INFO

Продуктова група
Аксесоари за челни товарачи
Марка /Модел
Rinieri EB 1532 4
Година на регистрация
2015
Допълнителни опции
Екс демо
Местоположение на машината
Degeberga
Страна
Швеция
Обща оценка
1
2
3
4
5
ID на Mascus
ED5802F0

ЦЕНИ

Избери валута

ХАРАКТЕРИСТИКИ

Брой на вътрешния инвентар
6EB15324
Вид аксесоари
Вили за сено
Производствен номер
28311
Тегло за транспортиране
500 кг
Гаранция
Ingen
Страна на производство
Италия
Друга информация

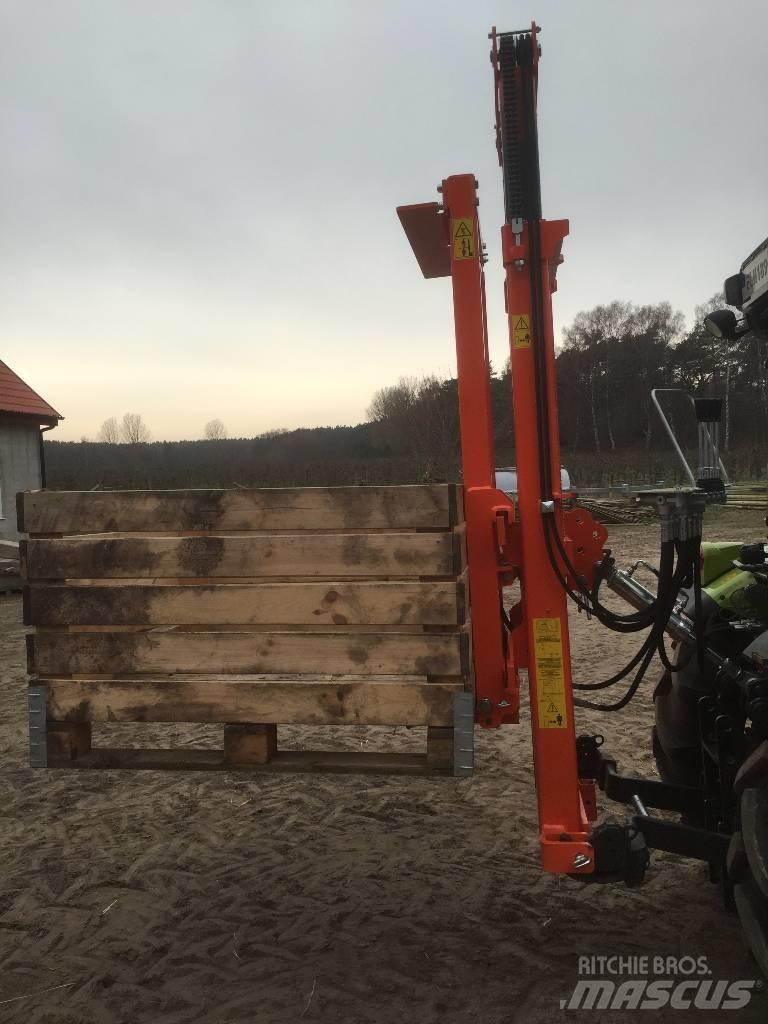

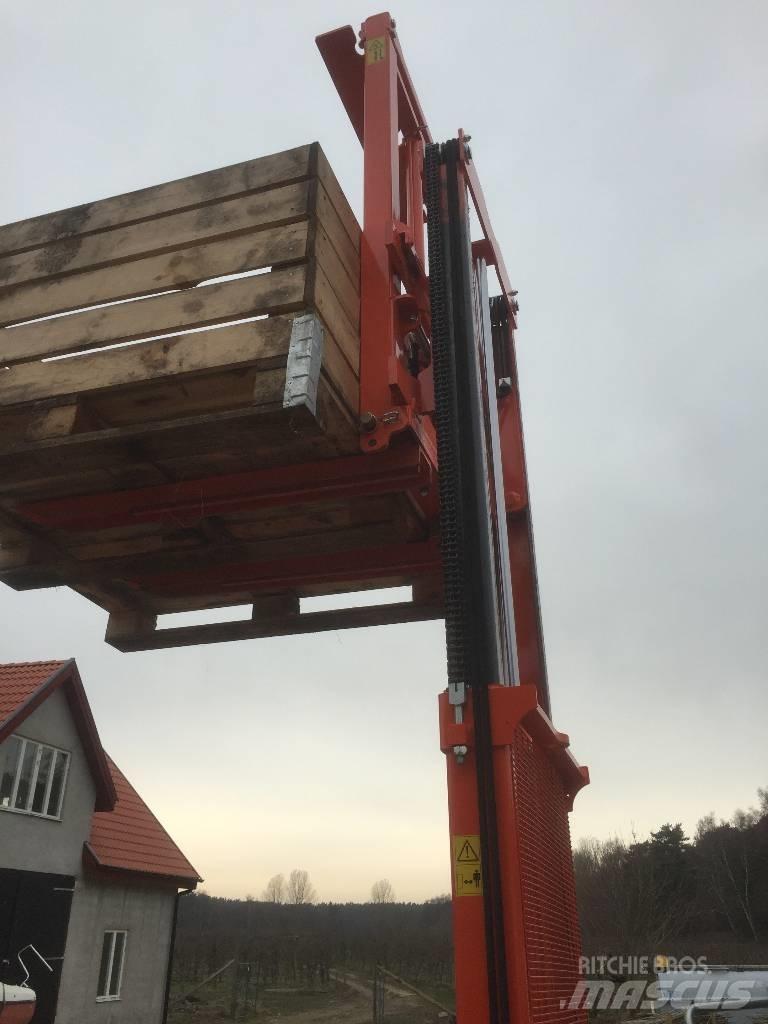

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingПокажете повече

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Швеция
