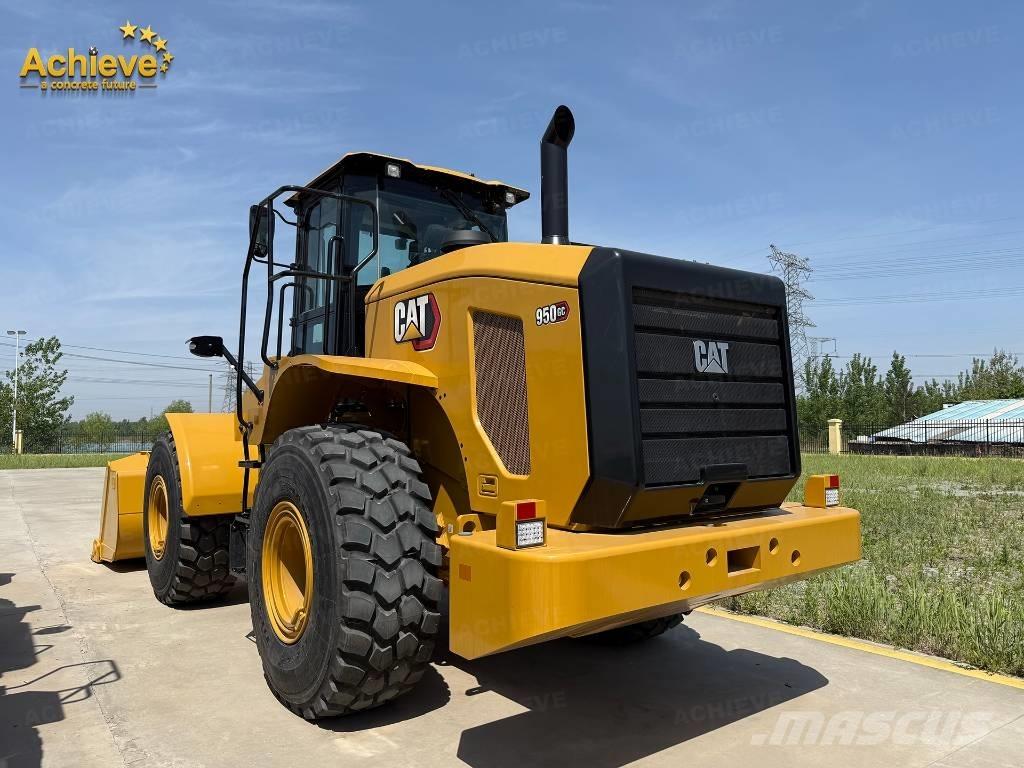

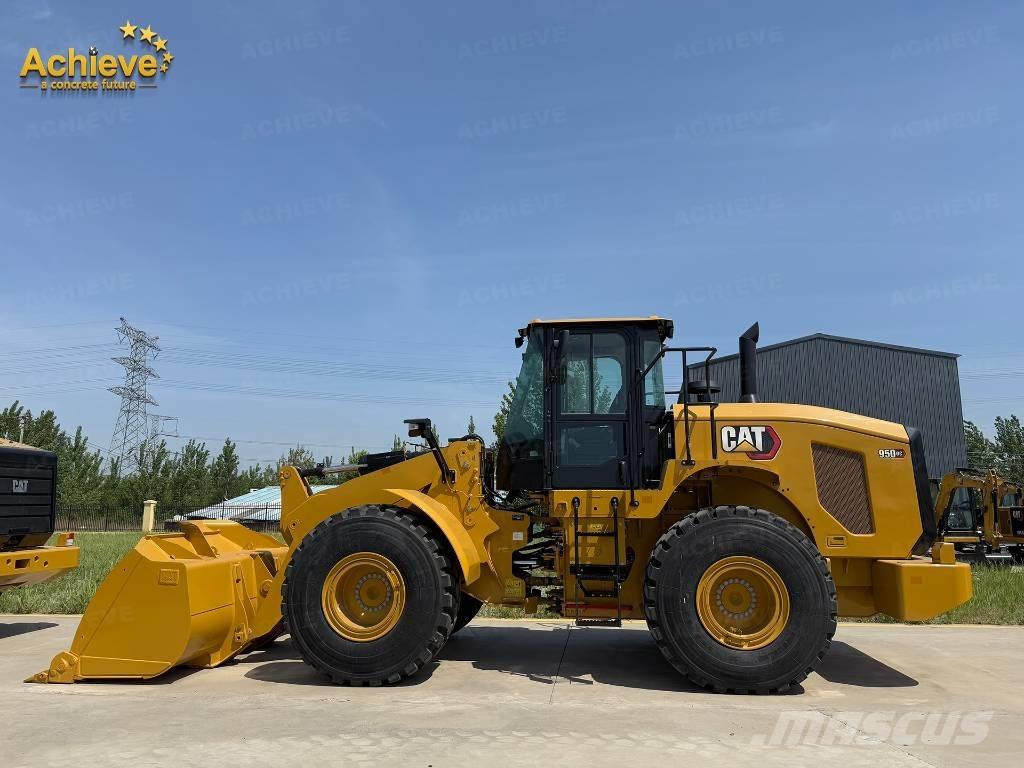

CAT 950 GC Electric

Medium wheel loaders 950 GC Main technical specifications Net Power - ISO 9249 151 kW Operating weight 18676 kg Bucket capacity 2.5-4.4 m³（3.3-5.75 yd³） Engine Net Power - ISO 9249 151 kW cylinder diameter 105 mm stroke 135 mm engine Engine model Cat C7.1 displacement 7.01 l Maximum Gross Torque - 1400 rpm 1020 N·m Rated Net Power - 2200 rpm - ISO 9249 151 kW Rated Gross Power - 2200 rpm - ISO 14396 168 kW Maximum Gross Power - 2000 rpm - ISO 14396 171 kW Maximum Net Torque - 1300 rpm 931 N·m weight Operating weight 18676 kg bucket Bucket capacity 2.5-4.4 m³（3.3-5.75 yd³） Operating specifications digging force 147 kN Note (1) Conforms to ISO (2007) 14397-1 parts 1 to 5. Static Tipping Load - 40° Full Turn - Rigid Tires 11197 kg Static Tipping Load - 40° Full Turn - ISO 14397-1* 10503 kg Note (2) *Fully compliant with ISO (2007) 14397-1 Parts 1 to 6, which requires a 2% maximum error between calculated and tested results. gearbox Forward - 1st 7 km/h Forward - 2nd 12.5 km/h Forward - 3rd 22 km/h Forward - 4th 34 km/h Reverse - 1st gear 7 km/h Reverse - 2nd 12.5 km/h Reverse - 3rd 22 km/h hydraulic system Steering System - Pump Type piston Hydraulic Cycle Time - Dump at Maximum Lift 1.2 s Hydraulic Cycle Time – Total Cycle Time 10.1 s Hydraulic Cycle Time – Lower, No Load and Float Lower 2.8 s Hydraulic Cycle Time - Lift from Carry Position 6.1 s Implement System - Optional 3rd Function Maximum Flow 280 l/min Implement System - Maximum Pump Displacement at 2200 rpm 248 l/min Implement System Pump Type piston Implement System - Maximum Operating Pressure at 50 ± 1.5 L/min (13.2 + 0.4 gal/min) 27900 kPa Implement System – Optional 3rd Function Maximum Pressure at 70 L/min 20680 kPa brakes brakes Brakes comply with ISO 3450 tire choose Options include: 23.5-25 16PR, L3 (Triangle); 23.5R25, L3 (Triangle); 23.5R25, L3 (Bridgestone) Cab ROPS/FOPS ROPS/FOPS complies with ISO 3471 and ISO 3449 Class II standards Maintenance refill capacity Differential - Final Drive - Front 40 l crankcase 20 l Fuel tank size 290 l Differential - Final Drive - Rear 38 l gearbox 45 l Hydraulic oil tank 120 l Cooling system 48 l size B-pin height 4188 mm B-Pin Height - Carry Position 655 mm Lift arm clearance 3649 mm Rear axle centerline to counterweight edge 2001 mm Height - Top of ROPS 3458 mm Height - Top of Exhaust Pipe 3596 mm Height - Top of Hood 2568 mm wheelbase 3300 mm Rear axle centerline to hitch 1650 mm Bucket tilt angle - maximum lift 60° Dump angle at maximum lift position 52° Rack Angle - Carrying 45° Backward Angle - Ground Position 40 ° Height - Axle Centerline 750 mm
