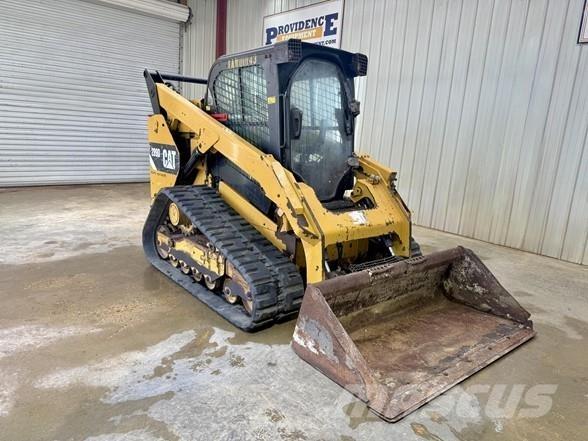

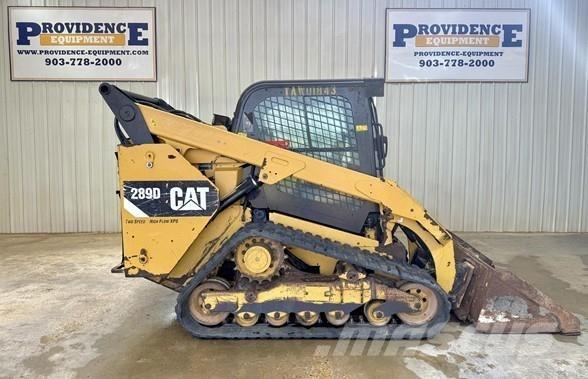

CAT 289D

Description: Machine Highlights Year: 2014 Make: Caterpillar Model: 289D XHP Cab AC/Heat Joystick Controls High Flow 72HP Joystick Controls 32GPM Tipping Load: 7,600LBS Operating Weight: 10,533LBS Hours: 3195 Serial Number: CAT0289DKTAW01843 Engine: Make: CAT Model: C3.3B DIT (turbo) Net Power: 72.90 HP Gross Power: 74.30 HP Gross Power SAE J1995: 74.30 HP Net Power SAE 1349: 72.90 HP Displacement: 203 cu. in. Bore: 3.70” Stroke: 4.70” Specifications: Operating Capacities-50% Tipping Load: 3800 lbs. Operating Capacities-35% Tipping Load: 2660 lbs. Ground Contact Area: 2015 in2 Ground Pressure: 5.20 Psi Tipping Load: 7600 lbs. Breakout Force, Tilt Cylinder: 7291 lbs. Operating Weight: 10,533 lbs. Drive Train: Travel Speed (Forward or Reverse) One Speed: 4.5 mph Dimensions: Length of Track on Ground: 64.20” Overall Length- Track: 83.80 “ Length with Bucket on Ground: 146.20” Length w/o Bucket: 117.90” Height to Top of Cab: 83.20” Width: 76” Max. Overall Height: 158.10” Bucket Pin Height at Max. Lift: 125.10” Bucket Pin Height at Carry Position: 7.50” Reach at Max. Left and Dump: 30” Clearance at Max. Lift and Dump: 94” Ground Clearance: 8.90” Departure Angle: 33 degrees Turning Radius from Center-Coupler: 55.50” Turning Radius from Center-Bucket: 88.80” Max. Reach with Arms Parallel to Ground: 50” Rack Back Angle at Max. Height: 84 degrees Bucket Pin Reach at Max. Lift: 14.50” Hydraulic System: High Flow: 32GPM Standard-Hydraulic Power (calculated): 44 HP Service Refill Capacities: Cooling System: 3.70 gal Engine Crankcase: 3 gal Fuel Tank: 24.80 gal Hydraulic System: 13.70 gal Hydraulic Tank: 10.30 gal 2014 CAT 289D CAB TRACK SKID STEER LOADER. AC/HEAT, JOYSTICK CONTROLS, 2 SPEED, HIGH FLOW, 72HP, TIPPING LOAD OF 7,600LBS, AND AN OPERATING WEIGHT OF 10,533LBS! SE HABLA ESPAÑOL! FINANCING AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Airconditioning: 1 Heater: 1 Height: 84.000000000000 Length: 117.9 Ropstype: Enclosed Width: 78 Shippinglength: 118 Shippingwidth: 78 Bucket: 1 Shippingheight: 84.000000000000 Shippingweight: 10533.7 Tipload: 7600 Cruisespeed: 4.5
