PM 50024

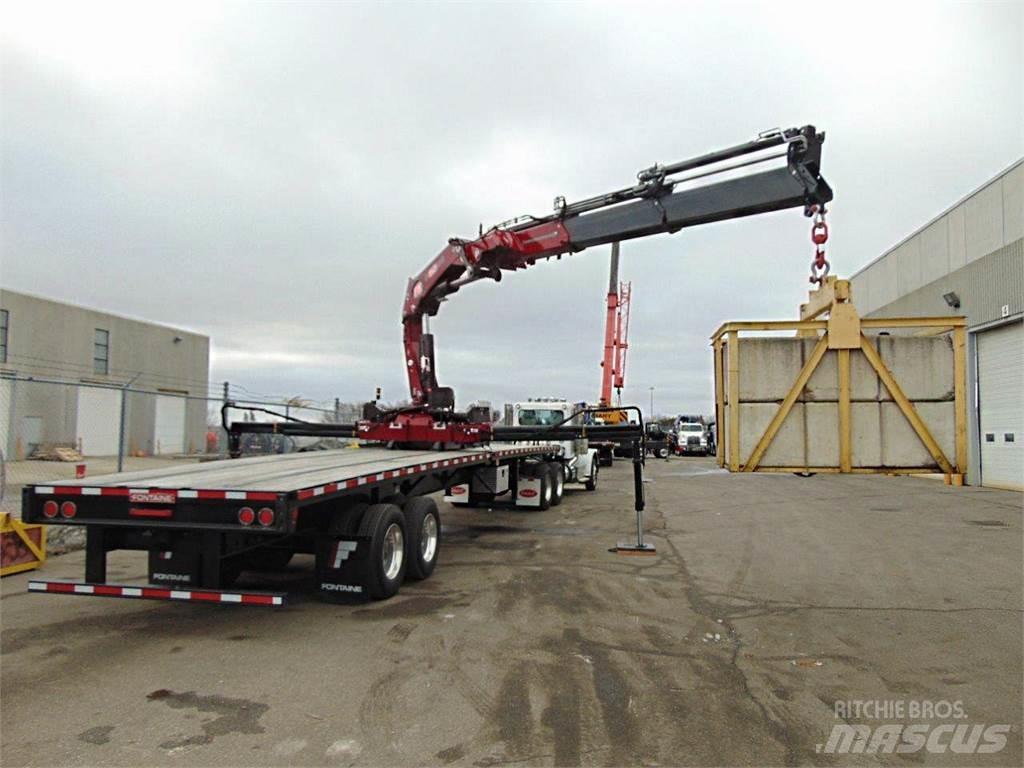

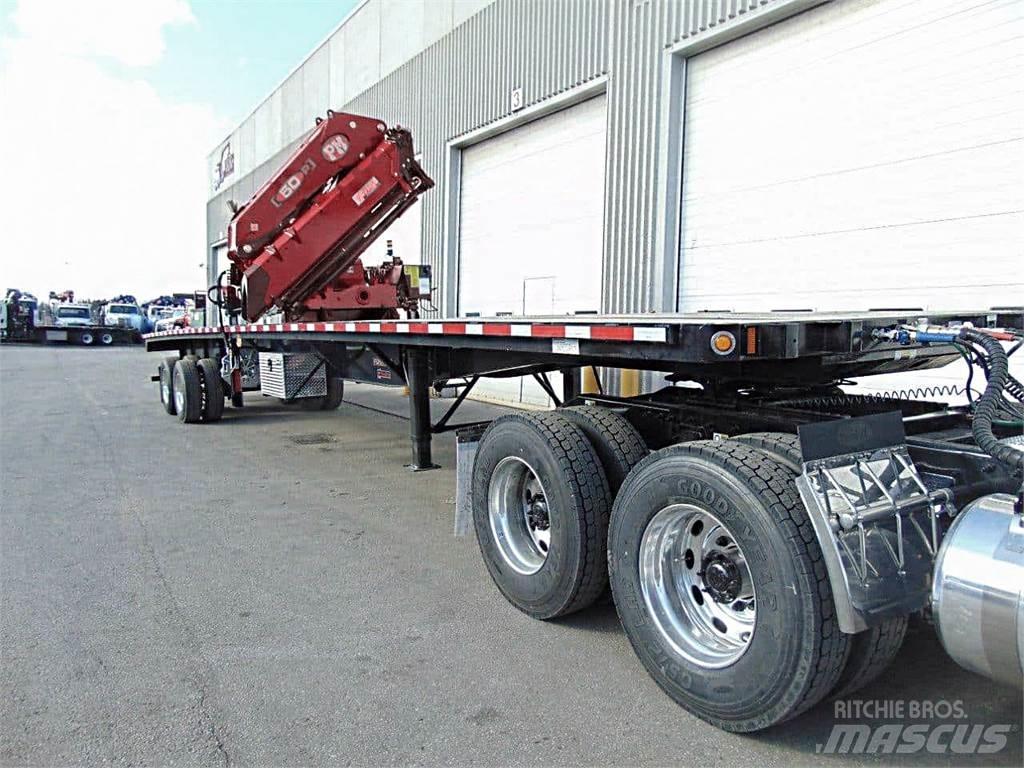

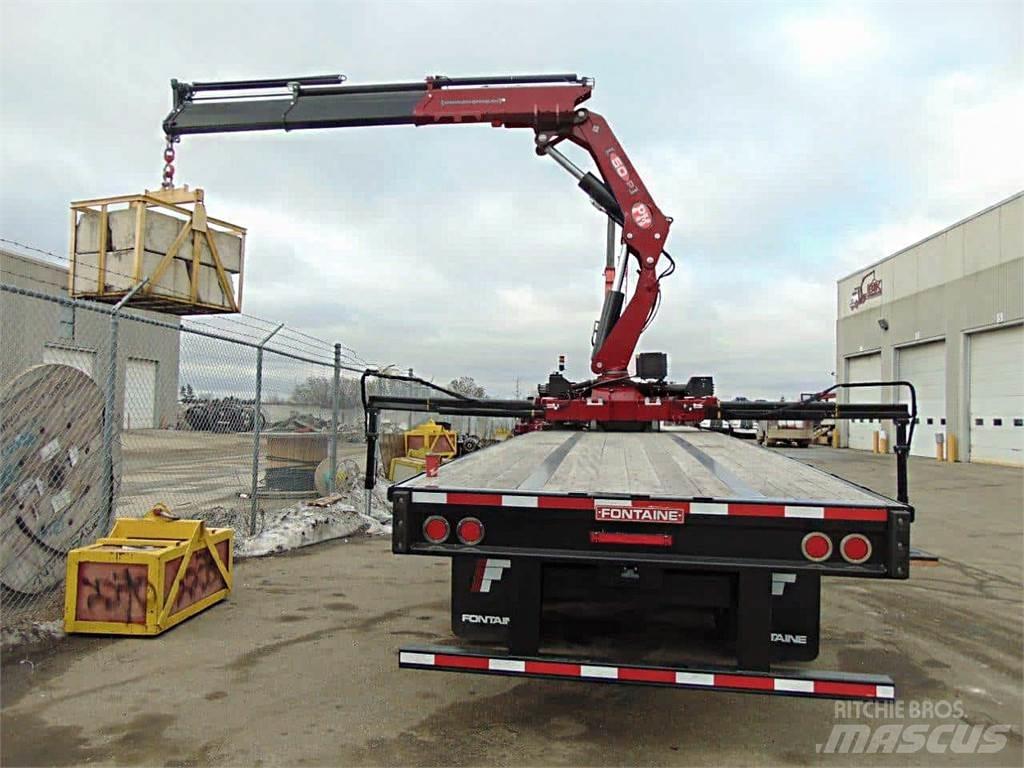

Boom Details NEW –  PM 50023 KNUCKLE BOOM Folding Hydraulic Knuckle Boom w/ 32’ 6” Horizontal Capacities as Follows: 46,740 lbs ... 6’ 9” 23,810 lbs ... 13’ 7” 16,640 lbs ... 19’ 8” 12,720 lbs ... 25’ 9” 10,100 lbs ... 32’ 6” 3 Independent Extensions to 32’ 6” Total Horizontal – Sequentially Extended PM Connecting Rods at First Boom and Knuckle, 400 Degrees Pedestal Rotation Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders Hydraulic Extra-Wide Main Outriggers at Pedestal – 25’ 7” Span Hydraulic Oil Cooler, High Pressure Return Filter and Min. 52-Gallon Oil Tank for Boom DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control R adio Remote Control Includes:  2 Batteries, In-Cab Charger, and Back-up Cord Crane Painted PM Blue – Certified Painting Quality System – Load Chart on Boom in FT. & LBS. Mounted Mid-Mount on Trailer, with Hydraulic and Electric Connections for Tractor Wet-Line Operation Warranty:  1-Yr. Part & Labor on Entire Boom, 3-Yr. on Structural Components Trailer Details NEW – FONTAINE – 42’ x 102” TRAILER WITH 50” SPLIT IN PLATFORM FOR MID MOUNT Sliding Hendrickson Air Ride Tandem Axle, 60” Adjustable 1-1/8” Wood Flooring on 12” Centers 49” Axle Spread with 295/75R22.5 Tires and Steel Rims Available Options: Aluminum Stabilizer Pads (2x) with Holders Installed (1) 36” Aluminum Tool Box Under Deck
