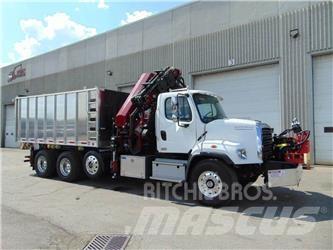

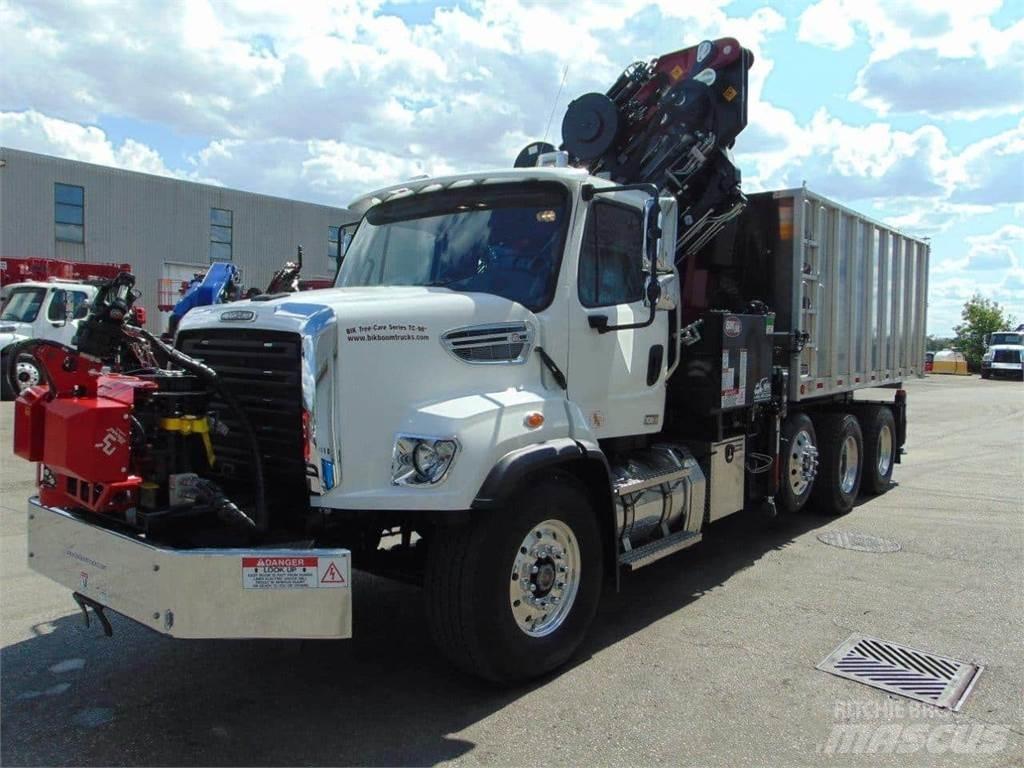

BIK TC-98

ОСНОВНИ СВЕДЕНИЯ

Продуктова групаДруги кранове/вишки
Марка /МоделBIK TC-98
Допълнителни опцииНеупотребявани
Местоположение на машинатаMilford, Massachusetts
Страна
Mascus ID99E180E6
+ Покажи повече подробности

ЦЕНИ

Цена без ДДСЦена на приложение

ХАРАКТЕРИСТИКИ

Обща оценка (1-5)
Друга информацияBOOM DETAILS
New – BIK Tree-Care Series TC-98 – 54.5 ton/m
 Knuckle Boom



6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn


Including (1) Grapple extension in jib,

Boom Capacity of
2,230 lbs ... 98’ Vertical

 Reach

Main Boom Horizontal Capacity:

21,000 lbs ... 14’

10,900 lbs ... 25’ 8”

6,800 lbs ... 38’ 8”

4,830 lbs ... 53’ 6”

Jib Horizontal Capacity:

2,100 lbs ... 63’

1,850 lbs ... 75’ 4”

1,700 lbs ... 82’

Grapple main extension to 86’

“Power-Link”
 connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders

Planetary Gear Rotation Motor
& Continuous Boom Rotation
 – for maximized slewing torque and reliability

15 Degree negative angle

 on main knuckle,
20 degree negative angle
 on jib
– Hyd Extra Wide Main outriggers
 at base – 25’ 7” total span


Auxiliary Stabilizers
– Extra wide type – 21’ span
, hyd out & down type at rear – Front Bumper Hyd Stabilizer

 – 100% stability 360 degrees

Two Hydraulic Oil Coolers
, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly
AW-46 weight Hyd Oil

Tandem pump / split valve
 pressure system for optimum speed for simultaneous
multi function use

DANFOSS
 Proportional Control Valve at Top Seat

SCANRECO
 Proportional Radio Remote Control

 w/2 batteries, charger

Engineer Stability load tested and certified

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components


DECK DETAILS
New  – 16’ long  x 96” Aluminum Dump Body

6’ solid steel sides

Smooth steel floor

Steel 6’ rear barn doors

Sliding latch

Nordic Scissor lift hydraulic dump system under body mounted that has manual ground level controls

Attached ladders on both sides

TRUCK DETAILS
New – Freightliner 108SD
4-axle
Day Cab Truck:


69,000 lb GVWR

CUMMINS
Diesel

380 HP
 – Allison Automatic Trans
.

20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims

40,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims

9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims

166” wheel base

Double Frame with integral front bumper frame extension (for front stabilizer)

Chrome single polished Exhaust pipe side of cab

Chromed Grille & Bumper, single 80 gallon alum fuel tank,

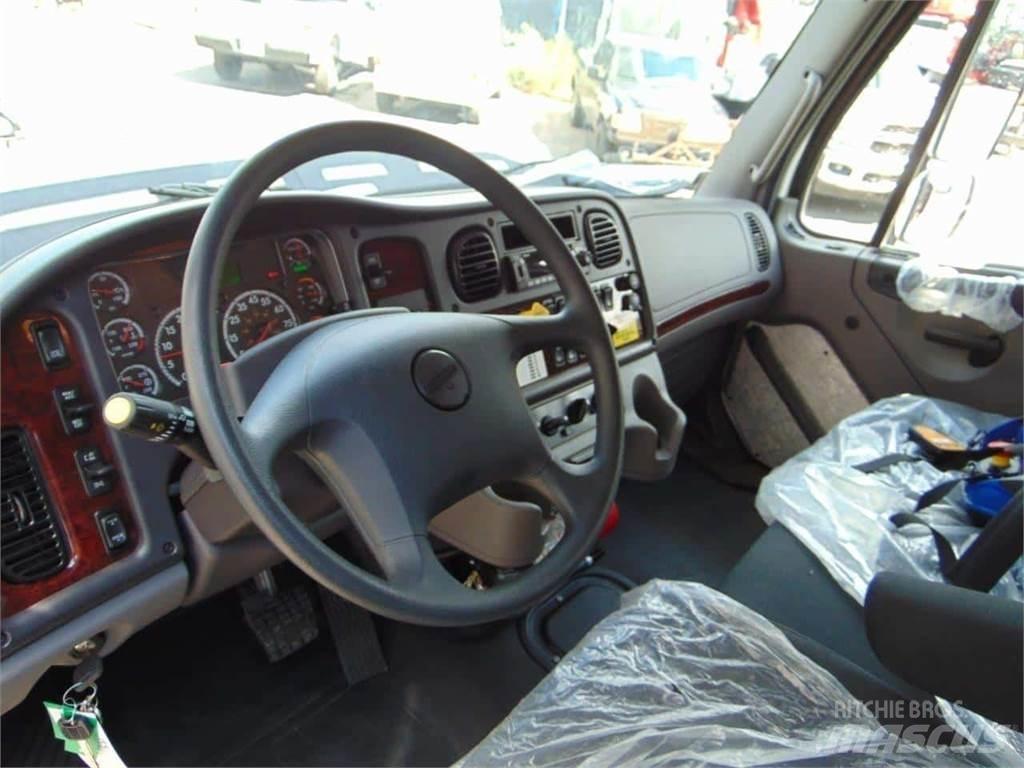

A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise,
heated mirrors, inter-axle and diff lock-ups, Cab White,
Air ride cab, full differential locks, exterior sun visor, etc…

Also Included Are

:

(5) pcs – 2” PVC stab pads w/holders

(2) pc Alum storage boxes installed

Custom re-enforced manual extn for grapple,

New Mecanil SG-280 Grapple saw with spare parts

2 to 3 day on site boom feature/function familiarization by a BIK tech

Options at Extra Cost:

Additional grapple saw – Mecanil SG 160 Grapple saw with spare parts kit and holder on deck

Front Wheel Drive conversion
 – to be able to have 6-wheel drive for off-road use

Draw plate at rear of truck frame with Heavy Duty air pintle hook and Reese receiver w/brake actuator (dual hitches)

Aluminum single man self-levelling basket

Mat rack behind the cab or mounted on top of deck at rear
a

TC-104 – 104’ Vert Reach Version
– with Mecanil SG-220 (instead of SG-280)
