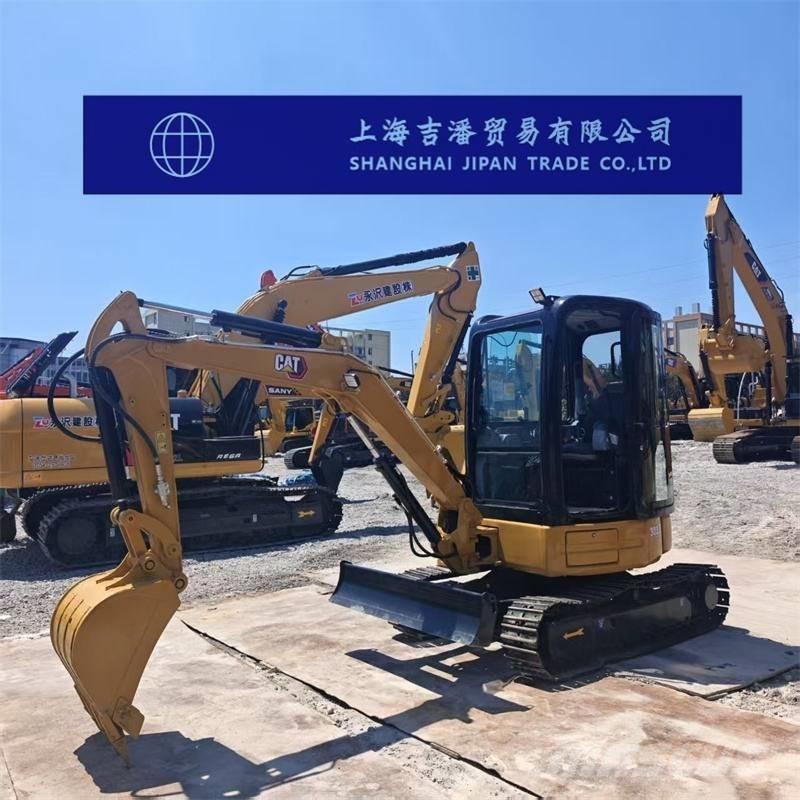

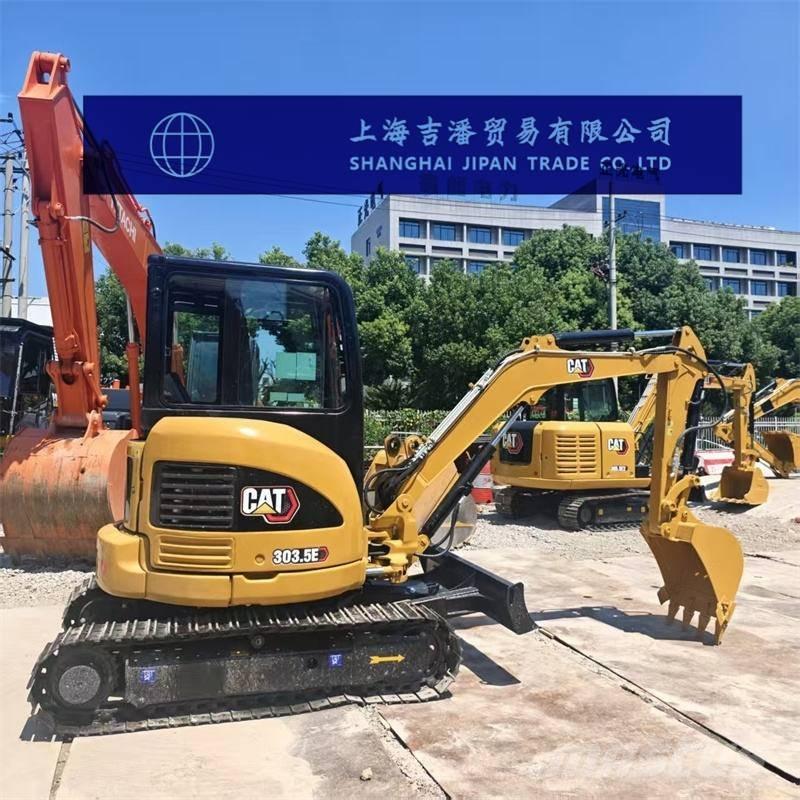

CAT 303.5 E

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Detailed parameters of CAT 303.5E excavator: Overall machine parameters The overall dimensions of the machine (length × width × height) and the transportation status are:4730×1780×2500mm The wheelbase of the entire machine is 1800mm The track gauge of the entire machine is 1460mm The grounding length of the entire machine's track is 2220mm The width of the entire machine's track plate is 300mm The height of the entire machine's tracks is 400mm The height of the entire machine's shoe teeth is 22mm The turning radius at the rear end of the entire machine: 890mm The ground clearance of the entire machine: 315mm The height of the machine's turntable from the ground is 565mm The width of the turntable of the entire machine is 1780mm The total width of the entire machine's turntable is 4080mm The tail end length of the entire machine's turntable is 890mm The distance from the rotation center of the entire machine to the center of the drive wheel: 780mm Weight parameter The overall working weight of the machine:3548-3770kg Minimum working weight: 3548kg Power system parameters Engine model:Cat C1.8 Rated power (ISO 14396):24.8kW Net power (SAE J1349/ISO 9249):23.6kW Cooling method: Water cooling Cylinder bore × stroke:87×102.4mm Displacement:1.8L Performance parameters Ground pressure:32.1Kpa Rotational speed: 9rpm Bucket digging force: 33kN Bucket shaft digging force:18.9kN Maximum traction force: 31kN Walking speed:4.6/2.6km/h Parameters of the hydraulic system The maximum flow rate of the main pump is 60L/min Pressure of the walking hydraulic circuit:24.5Mpa Pressure of the rotary hydraulic circuit:18.1Mpa Oil capacity parameters Fuel tank capacity:46 liters The capacity of the hydraulic oil tank is 42.3 liters Engine oil change volume:7L Coolant:5.5L Operation scope parameters Maximum excavation radius:5200mm Maximum excavation depth:2880mm Maximum excavation radius of the shutdown face:5060mm Maximum vertical excavation depth:2320mm Maximum unloading height:3520mm Maximum excavation height:4920mm Working device parameters The bucket volume of the working device:0.12m³ The boom length of the working device:2400mm The length of the working device bucket rod is 1260mm
