Максимален капацитет на повдигане
4 300 кг
Тип каросерия
Фиксирана рамка
Вид кабина
Затворена кабина
Ниво на емисии
Етап V / Ниво V
Производител на двигателя
BOBCAT
Максимална скорост
16 kм/ч
Усройство за извеждане на помощни хидравлики
160 л/мин
Страна на производство
Словения
Друга информация
Make / Model D34 BSH SV, 97/68 EC Stage V
Fuel Diesel
Cooling Liquid
Power at 2600 RPM (ISO 14396 Gross): 78.3 kW
Torque at 1800 RPM (SAE J1995 Gross) 409.0
Nm
Number of cylinders 4
Displacement 3409 cm3
Fuel tank 120.00 L
Diesel Exhaust Fluid 20.40 L
Vehicle steering
Direction and speed controlled by Selectable
Joystick
Controls (SJC)
Loader hydraulics tilt and lift Selectable Joystick
Controls (SJC)
Front auxiliary (standard)
Electrical switch on right-hand steering leve
Tipping load (ISO 14397-1) 5087 kg
Rated operating capacity (ISO 14397–1) 1780 kg
Pump capacity 87.10 L/min
Pump capacity (with high flow option) 138.50 L/
min
Pump capacity (with super flow option) 159.00 L/
min
System relief at quick couplers 23.8-24.5 MPa
Max. travel speed 8.7 km/h
Max. travel speed (high range – optional) 16.7
km/h
Standard Features
450mm Wide Rubber Tracks
3 Point Seat belt
5” Deluxe Instrumentation (Radio Ready)
High-back cushion suspension seat
Selectable Joystick Controls (SJC)

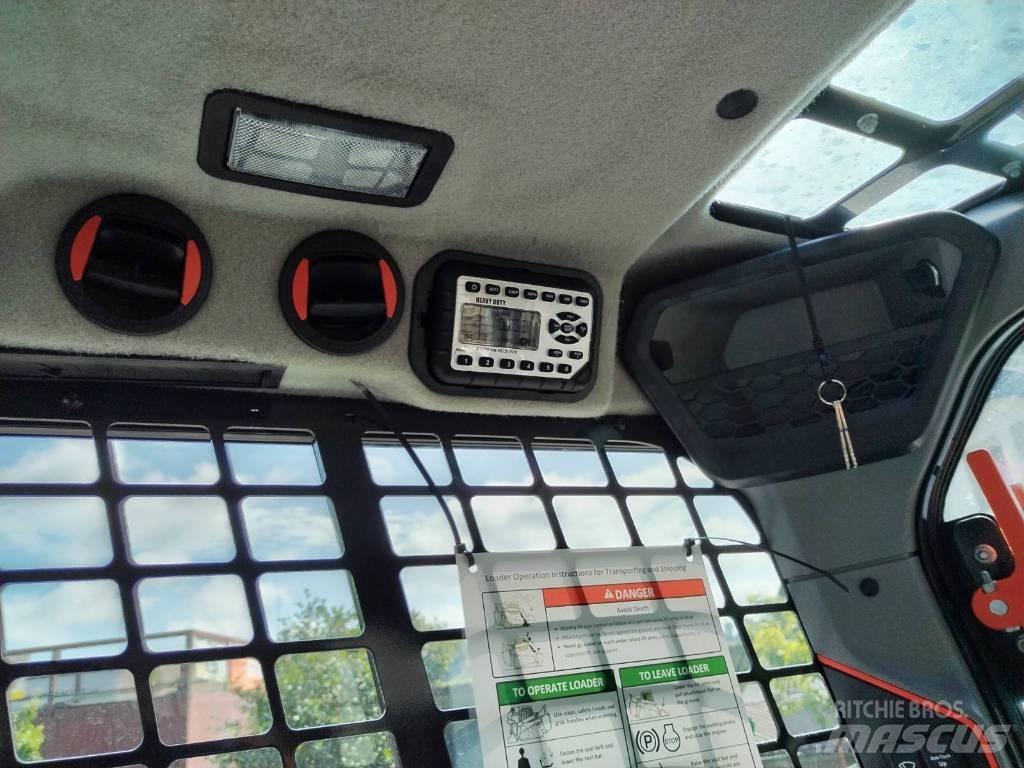

Deluxe pressurized cab with HVAC
Two Speed Travel
Auxiliary hydraulics: variable flow/maximum flow
Dual Direction Bucket Positioning (including ON/
OFF
switch)
Key start
Backup Alarm
LED Working Lights front and rear
Parking brake
Bob-Tach™ Attachment System
Bobcat Interlock Control System (BICS)
Engine/hydraulics system shutdown
EDC Pump with Standard Flow, High Flow and
Super
Flow modes.
Manual
Lift arm support
Spark arrestor muffler
Seat belt
Reversing Camera
Power Bob-Tach™
Machine IQ (telematic)
Warranty: 24 months or 2000 hours, whichever
occurs first
Other options that machine have:
Heated Cloth Air ride seat with 3 point seat belt
Reversable Fan
Auto Ride Control
RadioПокажете повече
