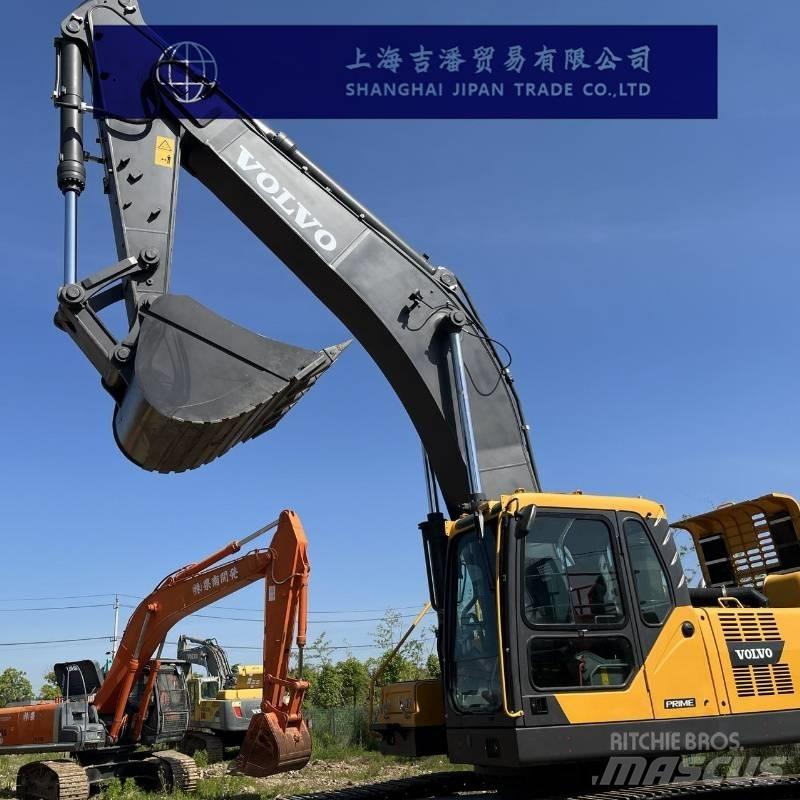

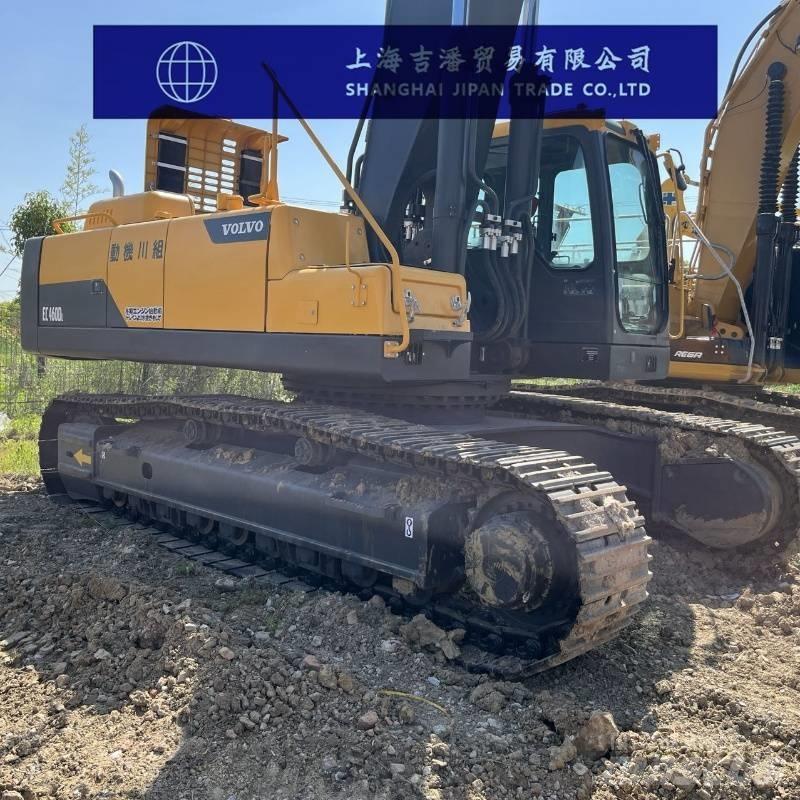

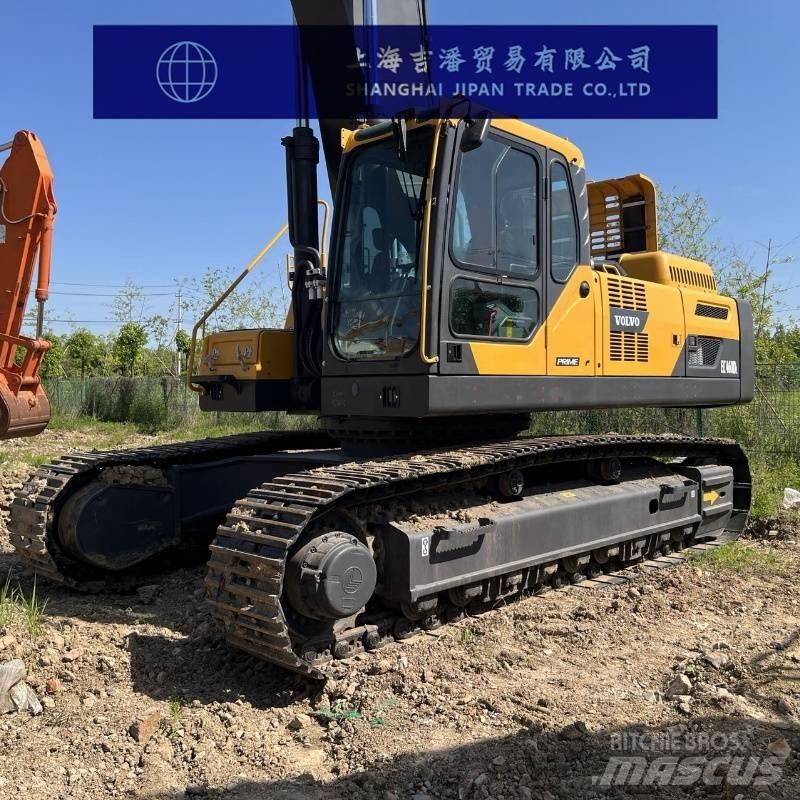

Volvo EC 460

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

The working weight of the entire machine (kg) is 44,500 Bucket capacity (m³) : 1.8-3.73 Boom length (mm) : 7000 The length of the bucket pole (mm) is 3350 Origin: Shanghai, China Tonnage (tons)46 Joint venture/import by manufacturers Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm)8.5 Walking speed (km/h) : 2.9/4.8 Climbing ability (%)70 Grounding specific pressure (Kpa) : 77.5 Bucket digging force (kN)253.0(standard)/276.5(additional force) Boom digging force (kN)195.1(standard)/213.8(additional force) Power system Engine model: Volvo D12D Rated power (kw/rpm)245/1800 Displacement (L)12.1 Number of cylinders (units)6 Bore × stroke (mm) : 131×150 The cooling method is water cooling Maximum torque in working mode: 1720N.m/1350rpm Hydraulic system The main pump type is variable axial piston pump ×2+ gear pump The maximum flow rate of the main pump (l/min) is 345×2+31 The type of walking hydraulic motor is a variable axial piston motor Rotary hydraulic motor type: Axial piston hydraulic motor Working hydraulic oil circuit (Mpa)31.4/34.3 Walking hydraulic circuit (Mpa)31.4 Rotary hydraulic circuit (Mpa)24.5 Control hydraulic Circuit (Mpa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)2-165×1590 Bucket rod cylinder - Number × cylinder diameter × Stroke (mm)1-190×1850 Bucket cylinder - Number × cylinder diameter × Stroke (mm)1-165×1335 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)685 Hydraulic oil tank (L)270 Hydraulic System (L)525 Engine oil change rate (L)42 Coolant (L)60 Main body size Total transportation length (mm) : 12070 Total transportation width (mm) : 3340 Total transportation height (mm) : 3650 The total height of the cab (mm) is 3250 Counterweight ground clearance (mm)1275 Track grounding length (mm)4370 The total length of the track (mm) is 5370 Track plate width (mm)600 The total width of the track (mm) is 3340 Track gauge (mm)2740 Minimum ground clearance (mm)550 The minimum turning radius (mm) of the front-end working device is 5090 The rear end rotation radius (mm) is 3730 Scope of work The maximum excavation radius (mm) is 12,000 The maximum excavation radius (mm) of the shutdown surface is 11780 Maximum excavation depth (mm) : 7700 Maximum excavation height (mm) : 10,970 Maximum unloading height (mm) : 7650 Maximum vertical excavation depth (mm) : 6840 The maximum effective excavation depth (mm) is 7550
