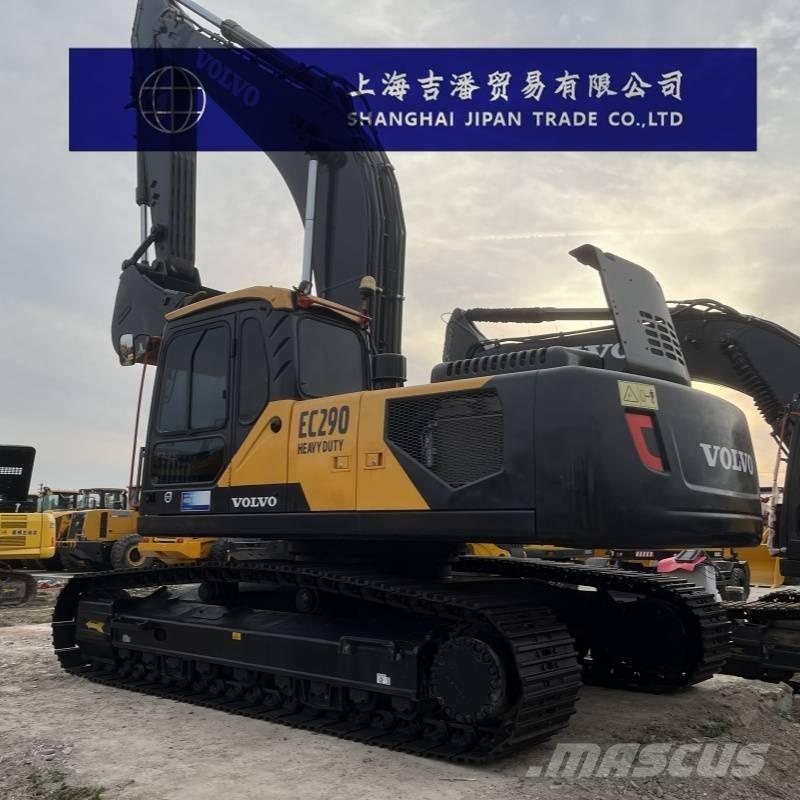

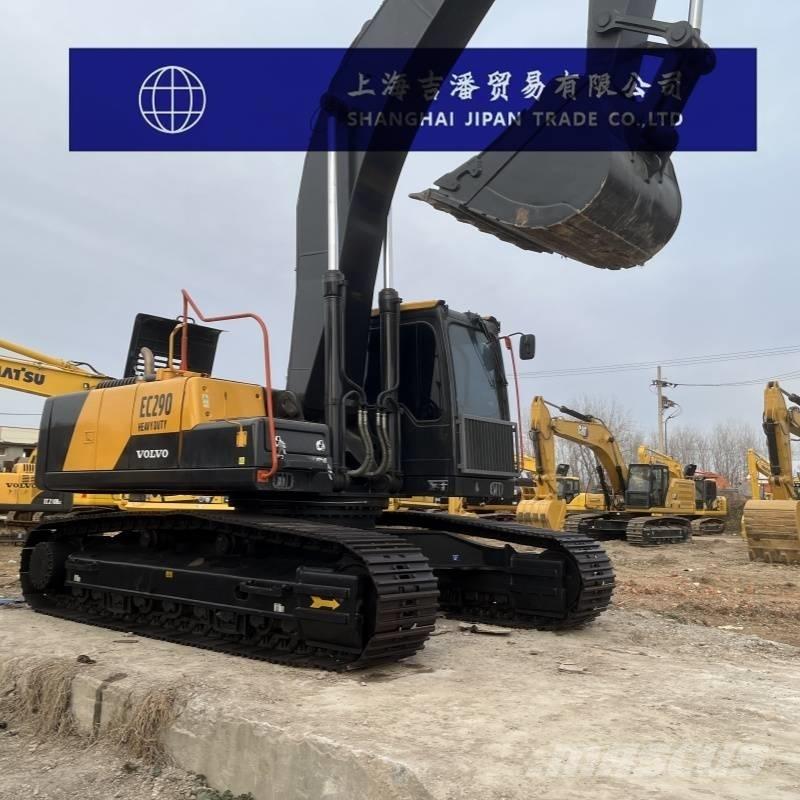

Volvo EC 290

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Volvo EC290 excavator Specification The working weight of the entire machine (kg) is 28,500-29,900 Bucket capacity (m³) : 1.3 Boom length (mm) : 6200 (Heavy boom) The length of the boom (mm) is 3050 Origin: South Korea Tonnage (tons)29 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 10.2 Walking speed (km/h) : 3.3/5.2 Climbing ability (%)70% (35°) Ground pressure (Kpa)54.1 (when the counterweight is 5.4 tons) Bucket digging force (kN) : 181.4 (standard mode) /198.4 (force application mode) Bucket shaft digging force (kN) : 127.6 (standard mode) /139.5 (force application mode) The maximum traction force (kN) is 230.5 Power system Engine model: VOLVO D7D Rated power (kw/rpm) : 153/1900 Displacement (L)7.1 Number of cylinders (6 Cylinder diameter × stroke (mm)108×130 The cooling method is water cooling Working form: Turbocharged; Electronic control direct injection Pressurized air cooler Hydraulic system Main pump type variable: Axial piston pump ×2+ gear pump The maximum flow rate of the main pump (l/min) is 250×2+19 The type of walking hydraulic motor is variable axial piston motor ×2 Rotary hydraulic motor type: Axial piston hydraulic motor (with mechanical braking) Working hydraulic circuit (Mpa)31.4/34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)26.5 Control hydraulic circuit (Mpa)3.9 Boom cylinders - number × cylinder diameter × stroke (mm)2-140×1480 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-150×1745 Bucket cylinder - Number × cylinder diameter × stroke (mm)1-140×1140 Oil capacity Fuel tank (L)470 Hydraulic oil tank (L)195 Hydraulic system (L)400 Engine oil change volume (L)32 Coolant (L)44 Main body size The total length of transportation (mm) is 10,400 The total transportation width (mm) is 3190 The total transportation height (mm) is 3290 The total height of the cab (mm) is 3030 The ground clearance of the counterweight (mm) is 1145 Track grounding length (mm) : 4015 The total length of the tracks (mm) is 4870 Track plate width (mm) : Three-tooth 600/700/800/900; Two teeth 700 The total width of the tracks (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 480 The minimum turning radius (mm) of the front working device is 4180 Rear end turning radius (mm) : 3050
