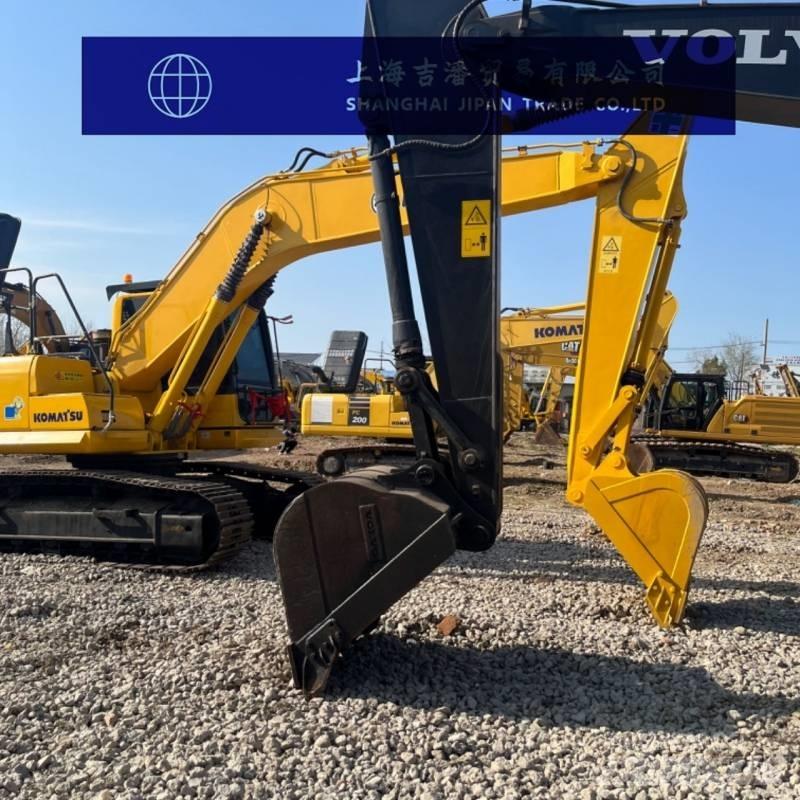

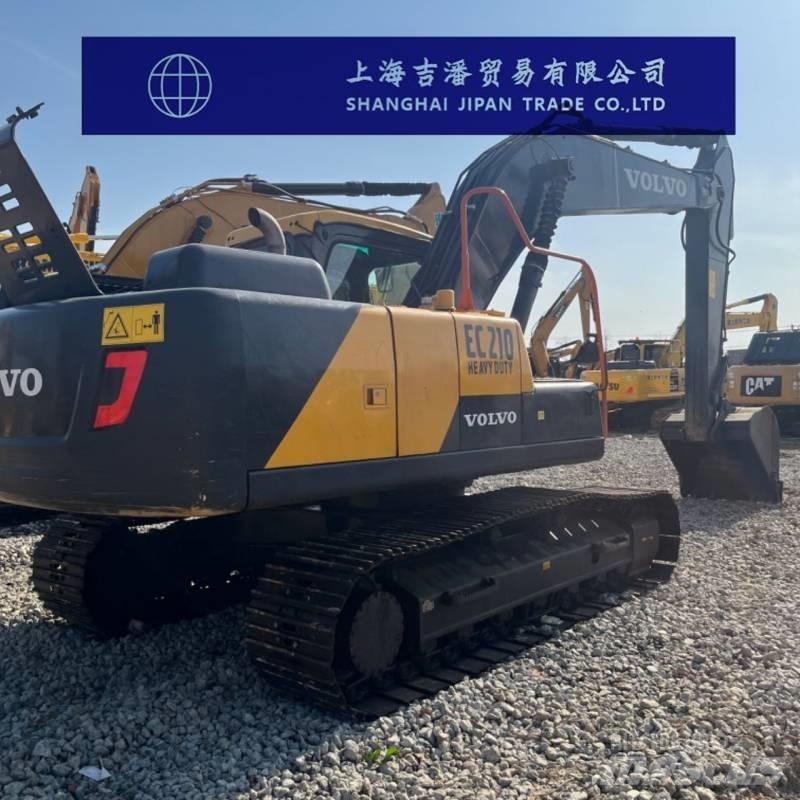

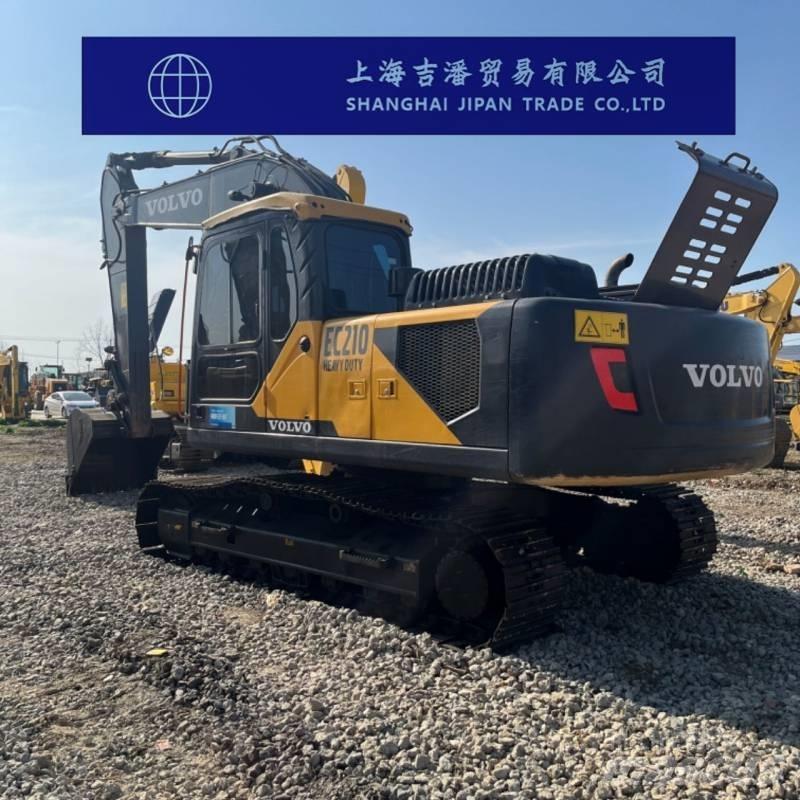

Volvo EC 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Power: Traditional power Manufacturer: Joint venture/Imported Bucket: Backhoe Tonnage (tons)21 The working weight of the entire machine (kg) is 18,100-22,800 Bucket capacity (m³)0.52-1.22 Boom length (mm) : 5700 The length of the boom (mm) is 2900 Performance Rotational speed (rpm) : 12.3 The rotary torque (Nm) is 76.7 Walking speed (km/h) : 3.5/5.8 Bucket digging force (kN)123 The digging force of the boom (kN) is 96 Maximum traction force (kN)183 Power system Engine model: Volvo D5E Rated power (kw/rpm) : 123/2000 Maximum torque (N.m) 670/1,600 Displacement (L) : 4.7 Number of cylinders (4) Cylinder diameter × stroke (mm)108*130 Hydraulic system The main pump type consists of two variable displacement axial piston pumps The pilot pump type is a gear pump The maximum flow rate of the main pump (l/min) is 2 x 212 Pilot pump flow rate (L/min)1 x 18 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa) 32.4/34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)27.9 The main overflow set pressure (Mpa) is 32.4/36.3 Boom cylinders - Number × cylinder diameter × stroke (mm)2*125 x 1 235 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1*135 x 1,540 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*120 x 1065 Oil capacity Fuel tank (L)375 Hydraulic oil tank (L)160 Hydraulic system (L)300 Engine oil change volume (L)17 Coolant (L)15 Main body size The total length of transportation (mm) is 9745 The total transportation width (mm) is 2800 Total transportation height (mm) : 3,080 The total height of the cab (mm) is 2930 The width of the vehicle (mm) is 2700 Track grounding length (mm)3370 The total length of the tracks (mm) is 4160 Track plate width (mm) : 600 Track gauge (mm) : 2200 Minimum ground clearance (mm) : 460 The ground clearance of the counterweight (mm) is 1025 Number of supporting wheels (single side) (units)7 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)46 Scope of work Maximum excavation radius (mm) : 9930 The maximum excavation radius (mm) of the shutdown face is 9380 Maximum excavation depth (mm) : 6730 Maximum excavation height (mm) : 9220 Maximum unloading height (mm)6430 Maximum vertical excavation depth (mm) : 5620
