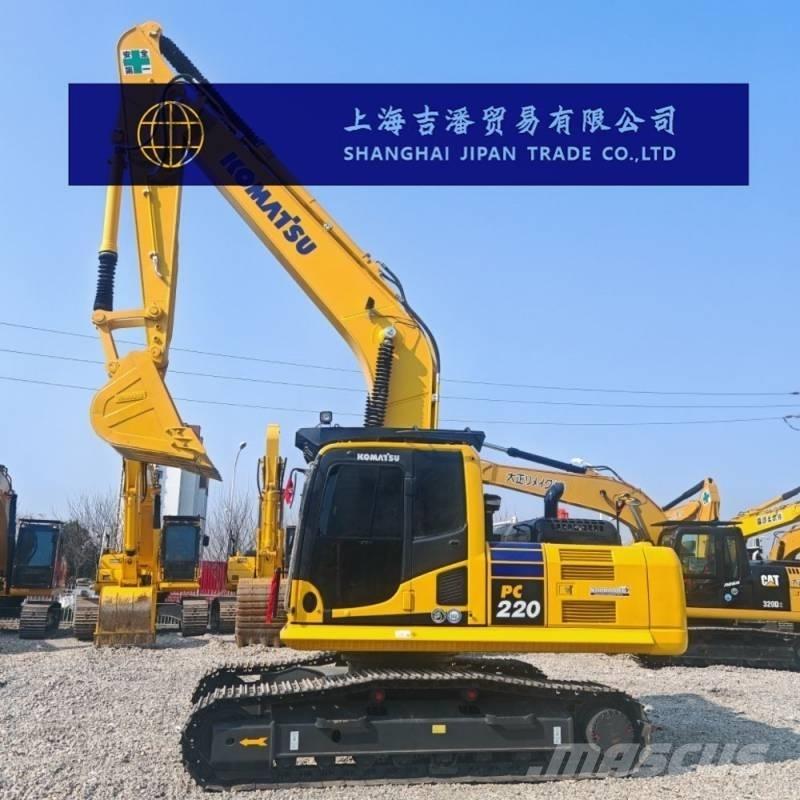

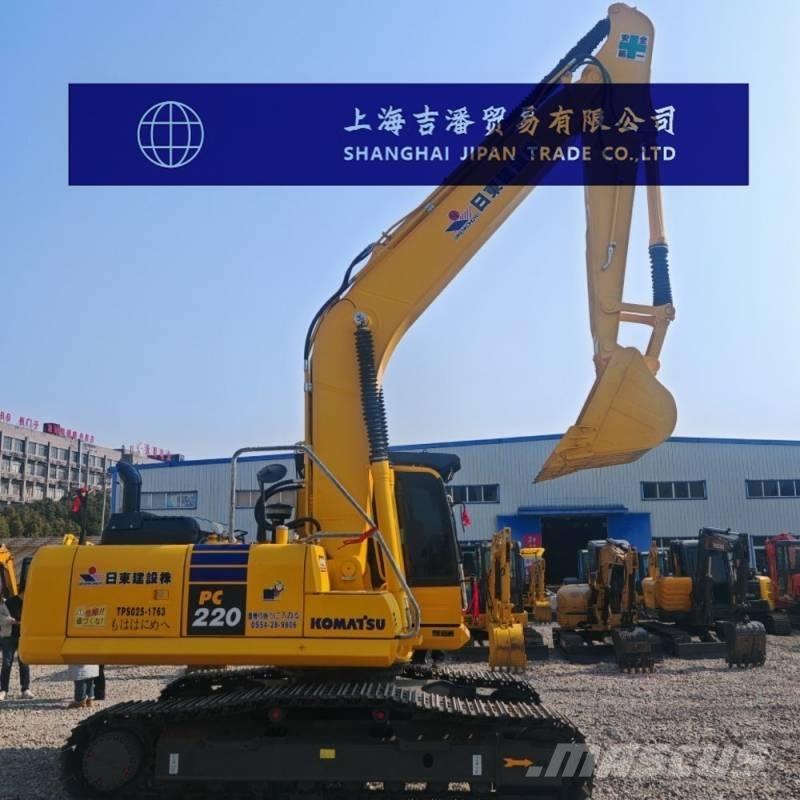

Komatsu PC 220

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Komatsu PC220 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe The overall working weight of the machine (kg) is 23,100 Bucket capacity (m³)1 Boom length (mm) : 5850 The length of the boom (mm) is 3045 Tonnage (tons)22 Performance Rotational speed (rpm) : 11.7 Walking speed (km/h)3.1/4.2/5.5 Climbing ability (%)70/35° The ground pressure (Kpa) is 50.4 Bucket digging force (kN)172 The digging force of the bucket arm (kN) is 129 Power system Engine model: Komatsu SAA6D107E-1 Rated power (kw/rpm) : 110/2000 Displacement (L)6.69 Number of cylinders (6 The cooling method is water cooling Working form: 6-cylinder, direct injection, turbocharged, rear-cooled engine; Meet the 2006EPA/Tier3 and EUIIIA grade standards. Hydraulic system Rotary hydraulic motor type: Axial piston motor ×1(with a rotary holding valve) Walking hydraulic motor type: Axial piston motor ×2(with parking brake) The maximum flow rate of the main pump (l/min) is 439 The walking hydraulic circuit (Mpa) is 37.3 Rotary hydraulic circuit (Mpa)28.9 Control Hydraulic Circuit (Mpa)3.2 Pilot Oil circuit Boom cylinders - number × cylinder diameter × stroke (mm)130×1335×90 Bucket rod cylinder - number × cylinder diameter × stroke (mm)140×1635×100 Bucket cylinder - Number × cylinder diameter × stroke (mm)130×1020×90 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135 Engine oil change volume (L)23.1 Coolant (L)19.8 Main body size The total length of transportation (mm) is 9885 The total transportation width (mm) is 5190 The total transportation height (mm) is 3185 The total height of the cab (mm) is 3055 The grounding length of the track (mm) is 3460 The total length of the track (mm) is 4260 Track plate width (mm) : 600 The total width of the tracks (mm) is 2980 Track gauge (mm) : 2380 Minimum ground clearance (mm) : 440 The ground clearance of the counterweight (mm) is 1100 Rear end turning radius (mm) : 2905 Scope of work Maximum excavation radius (mm) : 10180 The maximum excavation radius of the shutdown face (mm) is 10020 Maximum excavation depth (mm) : 6920 The maximum excavation height (mm) is 10,000 Maximum unloading height (mm) : 7035 Maximum vertical excavation depth (mm) : 6010 The maximum effective excavation depth (mm) is 6700 Lifting or deepening with a bulldozer (mm) no bulldozer
