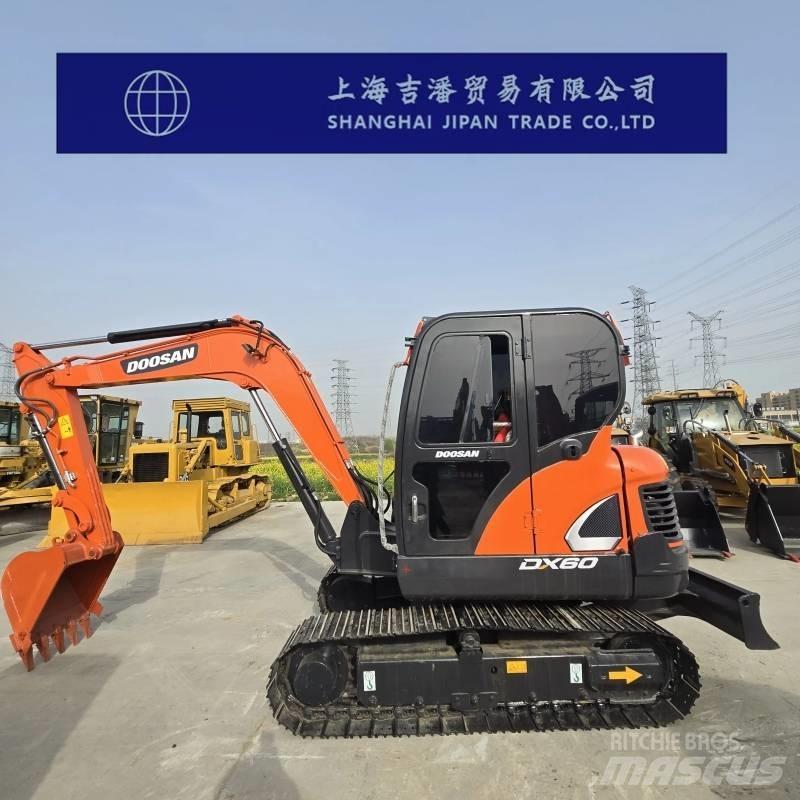

Doosan DX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DX60 excavator Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)6 The working weight of the entire machine (kg) is 5700 Bucket capacity (m³)0.21 Boom length (mm)3000 The length of the bucket pole (mm) is 1600 Performance Rotational speed (rpm)9 Rotational torque (Nm)971 Walking speed (km/h)4.2/2.3 Grounding specific pressure (Kpa)30 The digging force of the bucket (kN) is 4.2 tons The digging force of the boom (kN) is 2.8 tons Power system Engine model: D24C DIESEL Rated power (kw/rpm)38.9/2100 Number of cylinders (4) Bore × stroke (mm) : 90×94 The working mode is linear and turbocharged Hydraulic system The main pump type is a variable piston pump The type of walking hydraulic motor is axial piston hydraulic motor The maximum flow rate of the main pump (l/min) is 2×57.8 Working hydraulic oil circuit (Mpa)240 Walking hydraulic circuit (Mpa)240 Rotary hydraulic circuit (Mpa)220 Oil capacity Fuel tank (L)115 Hydraulic System (L)62 Main body size Total transportation length (mm) : 5870 Total transportation width (mm)2000 Total transportation height (mm)1983 The total height of the cab (mm) is 2565 Vehicle width (mm) : 1850 Total track length (mm) : 2540 Track plate width (mm)400 Total track width (mm) : 2000 Minimum ground clearance (mm) : 700 Counterweight ground clearance (mm)350 The minimum turning radius (mm) of the front-end working device is 2365 The rear end rotation radius (mm) is 1660 Scope of work Maximum excavation radius (mm) : 6136 The maximum excavation radius (mm) of the shutdown surface is 6000 Maximum excavation depth (mm) : 3807 Maximum excavation height (mm) : 5788 Maximum unloading height (mm) : 4064 Maximum vertical excavation depth (mm) : 3037 The maximum effective excavation depth (mm) is 3388 The width × height (mm) of the earthmoving board is 2000×350
