CAT 320GX

Цена без ДДС

Images38Videos1

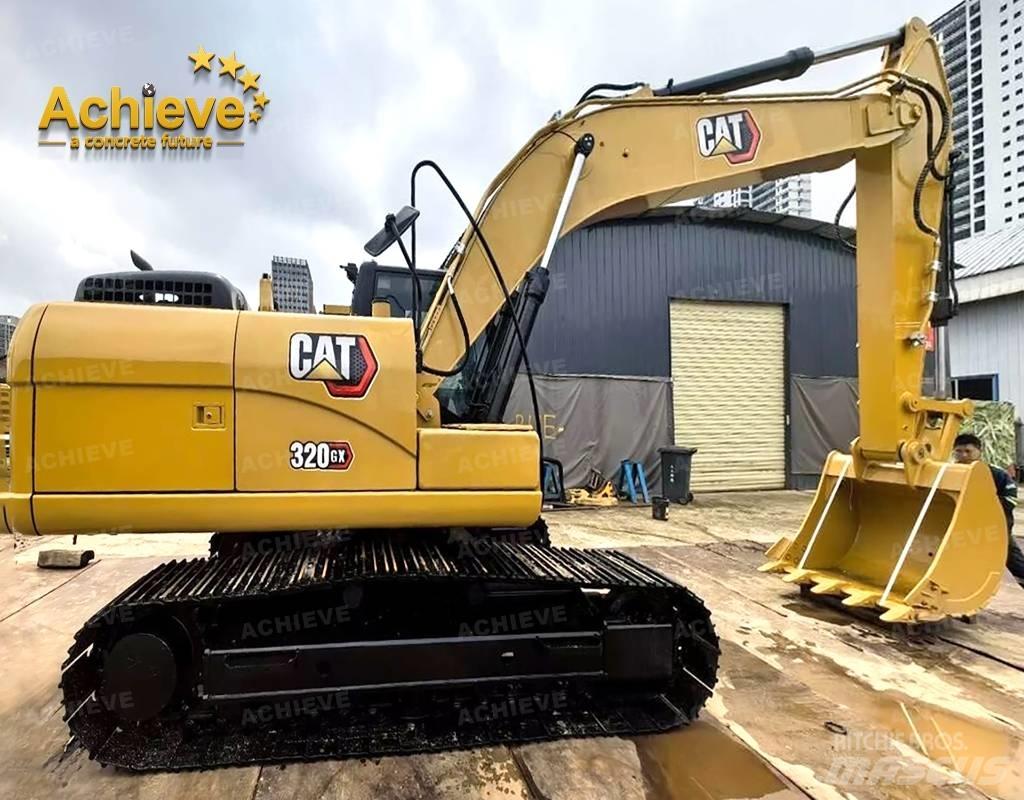

CAT 320GX Верижен екскаватор
CAT 320GX Верижен екскаватор
FavoriteЛюбим
shareСподелете
Save searchЗапазване на търсенето
Принтирай

INFO

Продуктова група
Верижен екскаватор
Марка /Модел
CAT 320GX
Година на регистрация
2021
Часове на употреба
3 570 h
Допълнителни опции
Обновено
Страна
Китай
Обща оценка
1
2
3
4
5
ID на Mascus
6B95FA39

ЦЕНИ

Избери валута

ХАРАКТЕРИСТИКИ

Вид управление
Дизел
Двигател
Cat® C4.4
Бруто тегло
19 800 кг
Двигател
105 кв (143 кс)
Производител на двигателя
CAT
Ниво на емисии
Етап IIIA / Ниво III

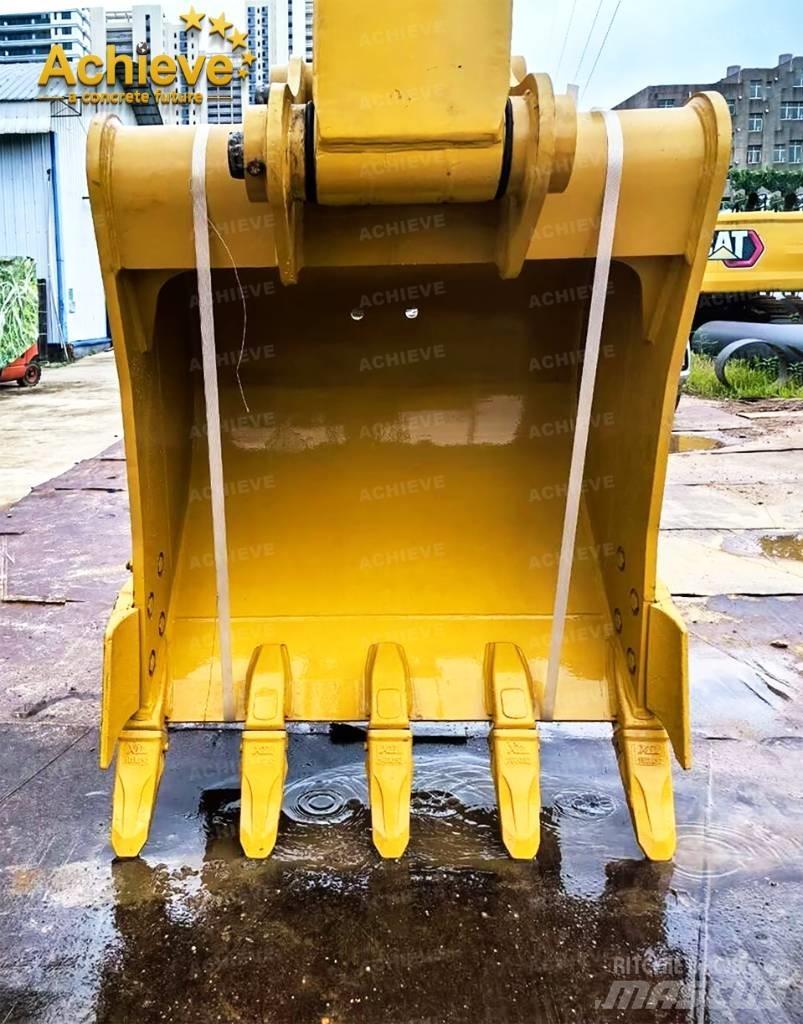

Капацитет на кофата
0,93 m3
Ширина на релси
2 980 мм
Усройство за извеждане на помощни хидравлики
429 л/мин
Максимална скорост
80 kм/ч
Оригинален цвят
yellow
Страна на производство
Китай
Условия за доставка
FOB, CIF
Сертификати
EPA, CE, TÜV
Аксесоари
Чук/ножица хидр. верига
чупеща стрела -> обезопасена чупеща стрела/греда
чупеща стрела на кофата -> обезопасена чупеща стрела - кофата/чука
GPS
Покажете повече
Друга информация
Medium Excavator 320 GX Main technical specifications Net Power - ISO 9249 105.6 kW Operating Weight 19800 kg Maximum digging depth 6430 mm Overview Reliable. Durable. Low-cost. More benefits. The Cat 320 GX combines reliability, durability, high productivity and low costs to give you more benefits. advantage Up to 15% reduction in fuel consumption Intelligent Mode and synchronized engine and electro-hydraulic control systems give you high performance with low fuel consumption. Up to 25% More Benefit A low initial purchase price, low maintenance costs and low fuel consumption mean you get more for your money. Built for everyday work Reliability, durability, easy handling and fast loading are just some of the features you expect. Up to 15% reduction in CO2 emissions The 320 GX reduces CO2 emissions by up to 15% compared to the previous 320D2 GC. engine Net Power - ISO 9249 105.6 kW Net Power - ISO 9249 (DIN) 144 hp (Metric) Engine Model Cat C4.4 Engine Power - ISO 14396 110 kW Engine power - ISO 14396 (DIN) 150 hp (Metric) Cylinder diameter 105 mm stroke 127 mm Displacement 4.4 l Biodiesel Performance Up to B20 grade can be used¹ emission Meets China National IV non-road emission standards. Note (1) Net power advertised is the power available at the flywheel at 2000 rpm when the engine is equipped with fan, intake system, exhaust system and alternator. The power advertised is tested to the specified standard in effect at the time of manufacture. Note (2) ¹Cat diesel engines require ULSD (Ultra-Low Sulfur Diesel, 15 ppm or less) or blends of ULSD with the following lower carbon intensity fuels**: up to 20% biodiesel FAME (Fatty Acid Methyl Ester)* or up to 100% renewable diesel, HVO (Hydrotreated Vegetable Oil) and GTL (Gas-to-liquid) fuels. Refer to guidelines for successful application. Consult your Cat dealer or Caterpillar Machine Oil Recommendations (SEBU6250) for details. *Engine without aftertreatment equipment can use up to 100% biodiesel blends (for blends above 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions of lower carbon intensity fuels are similar to conventional fuels. Hydraulic system Main System - Maximum Flow - Implement 429 l/min Maximum Pressure - Equipment 35000 kPa Maximum Pressure - Travel 35000 kPa Maximum Pressure - Swing 25000 kPa Maximum Pressure - Equipment - Normal 35000 kPa Rotating mechanism Rotation speed 11.07 r/min Maximum rotation torque 74 kN·m weight Operating Weight 19800 kg Note Standard undercarriage, reach boom, R2.7 (8'9") stick, General Duty (GD) 0.93 m³ (1.22 yd³) bucket, 600 mm (24") triple grouser shoes and 3600 kg (7,940 lb) counterweight. Maintenance refill capacity Fuel tank capacity 103 gal（US） Cooling system 24.5 l Engine oil 15 l Slewing drive 5.5 l Final Drives - Each 4.5 l Hydraulic system - including tank 218 l Hydraulic oil tank 115 l size Boom Reach 5.7 m (18'8") Stick Reach 2.7 m (8'9") Bucket GD 0.93 m³（1.22 yd³） Shipping Height – Top of Cab 2950 mm Armrest height 3010 mm Shipping Length 9570 mm Tail turning radius 2830 mm Counterweight clearance 1040 mm Ground Clearance 460 mm Track length 4080 mm Track gauge 2200 mm Transport width 2800 mm Note Track gauge, undercarriage extended with 650 mm (26") shoes; transport width, undercarriage retracted with 650 mm (26") shoes and without ladder Dimensions Track roller center distance 3270 mm Working range and force Maximum digging depth 6430 mm Boom Reach 5.7 m (18'8") Stick Reach 2.7 m (8'9") Bucket GD 0.93 m³（1.22 yd³） Maximum ground reach 9580 mm Maximum cut height 9290 mm Maximum loading height 6450 mm Minimum loading height 2460 mm 2440 mm (8 ft) maximum cut depth with flat bottom 6250 mm Maximum vertical wall digging depth 5510 mm Bucket Breakout Force - ISO 136 kN Stick Breaking Force - ISO 106 kN Working range and digging force Minimum working equipment radius 3680 mmПокажете повече
