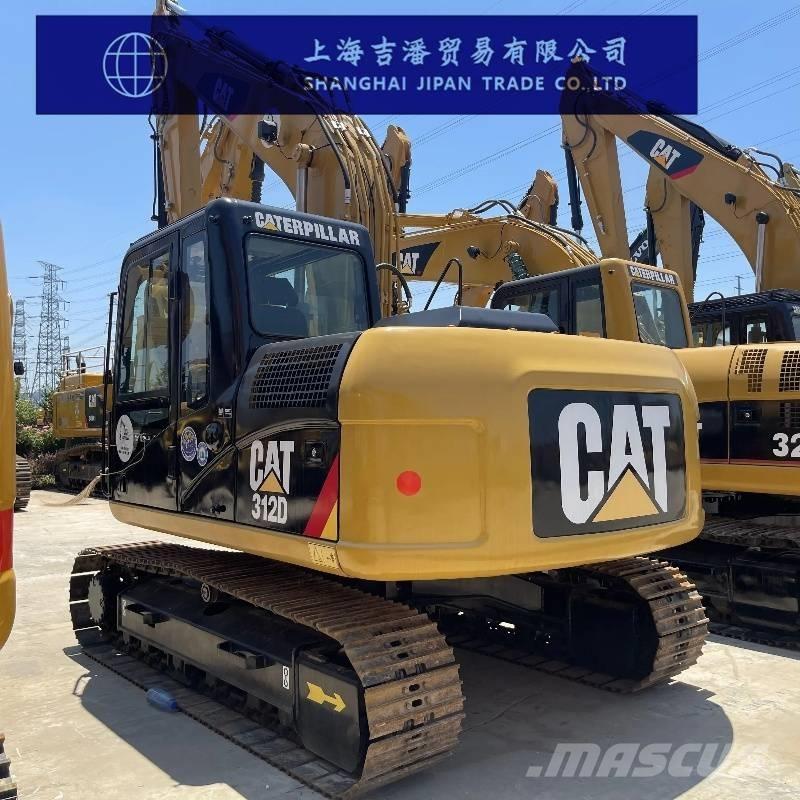

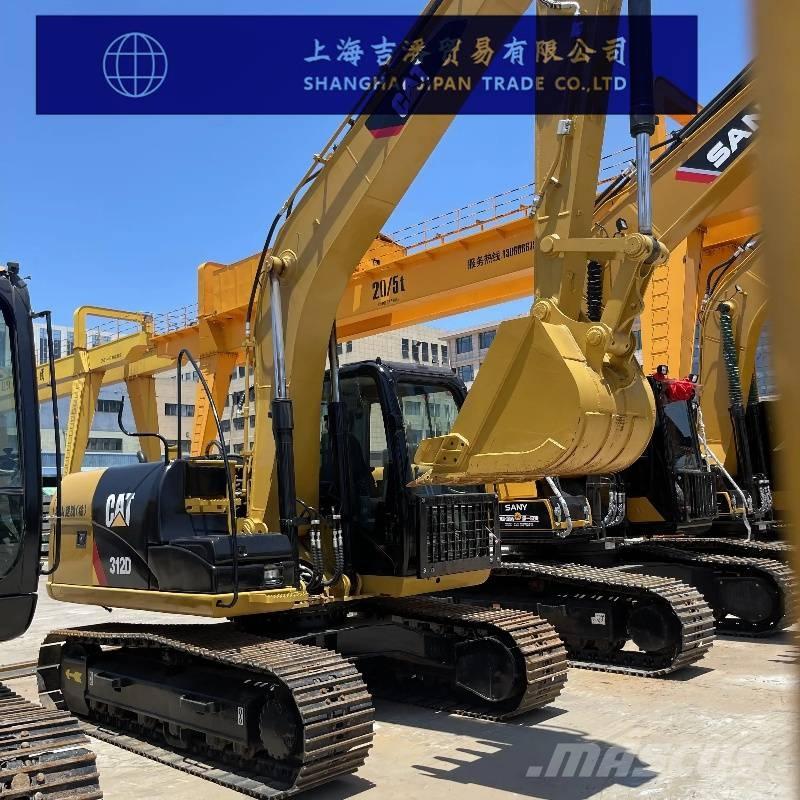

CAT 312 D

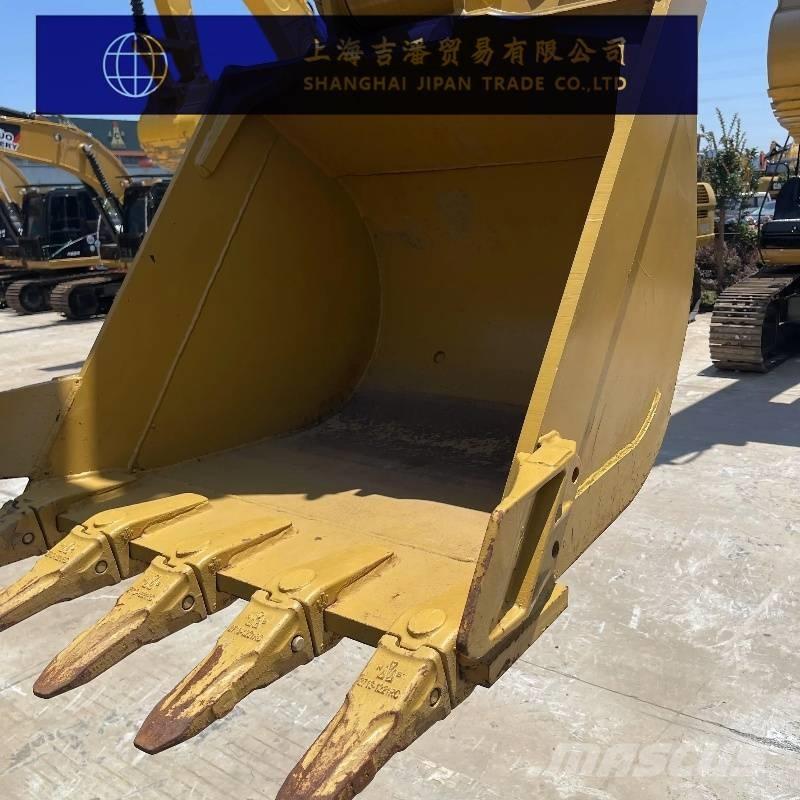

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar 312D Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 12920 Bucket capacity (m³) 0.52 Boom length (mm) 2800 Stick length (mm) 3000 Origin: Xuzhou Tonnage (tons) 12 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 12.4 Travel speed (km/h) 3.4/5.5 Climbing ability (%) 70/35° Bucket digging force (kN) 96 Stick digging force (kN) 62 dynamical system Engine model C4.2ACERT Rated power (kw/rpm) 72/2200 Displacement (L) 4.25 Bore × stroke (mm) 102×130 Cooling method: Water cooling Hydraulic system The maximum flow rate of the main pump (l/min) is 127 Working hydraulic oil circuit (Mpa) 3.05 Traveling hydraulic circuit (Mpa) 3.5 Slewing hydraulic circuit (Mpa) 2.3 Pilot oil circuit (MPa) 4.12 Boom cylinder - number × bore × stroke (mm) 110×1015 Bucket rod cylinder - number × bore × stroke (mm) 120×1197 Bucket cylinder - number × bore × stroke (mm) 100×939 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 250 Hydraulic Tank (L) 150 Hydraulic System (L) 162 (Including Fuel Tank) Engine oil change (L) 19.5 Coolant (L) 17.9 Body size Total length of transport (mm) 7590 Total Transport Width (mm) 2590 Total height of transport (mm) 2970 Cab total height (mm) 2760 Counterweight ground clearance (mm) 915 Track grounding length (mm) 2780 Total track length (mm) 3490 Track shoe width (mm) 500 Total track width (mm) 2590 Track gauge (mm) 1990 Minimum ground clearance (mm) 430 Scope of work The maximum excavation radius of the stopping surface (mm) is 8430 Maximum digging depth (mm) 5840 Maximum digging height (mm) 8580 Maximum unloading height (mm) 6210 Maximum vertical digging depth (mm) 5160 Maximum effective digging depth (mm) 5640 The width × height of the bulldozer plate (mm) are not available without a bulldozer There is no bulldozer shovel for lifting or pushing depth (mm).
