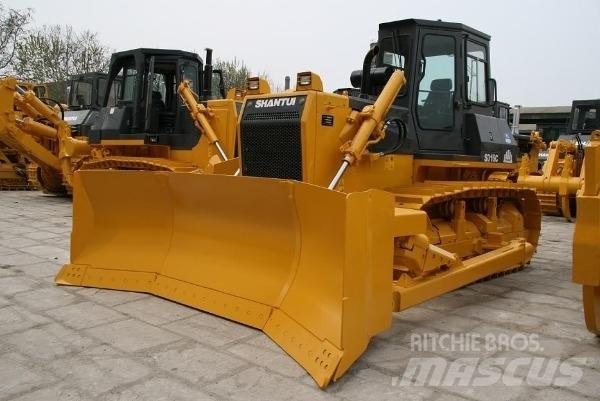

Shantui SD16C

three shank ripper

L×W×H (Ripper not included) 5500×3900×3100mm Operating weight (Ripper not included) 16.8t Engine Shangchai SC11CB184G2B1/ Weichai WD10G178E25 Rated power 120/1850kW/rpm Gradeability 30° Blade type U blade Blade width 3900×1200mm Dozing capacity 5m3 Ma× drop below ground of blade 530mm Lift height of blade 1095mm Ripper type Three-shank ripper Ripping depth of ripper 572mm Lifting height of ripper 592mm Number of carriers (each side) 2 Number of track rollers (each side) 6 Number of track shoes (each side) 37 Width of track shoe 610mm Track gauge 1880mm Ground length and ground pressure 2430-0.056mm/MPa Pitch 203.2mm Forward speed 0–3.29km/h 0–5.82km/h 0–9.63km/h Reverse speed 0–4.28km/h 0–7.59km/h 0–12.53km/h
