Shantui SD 16T

Цена без ДДС

Images8

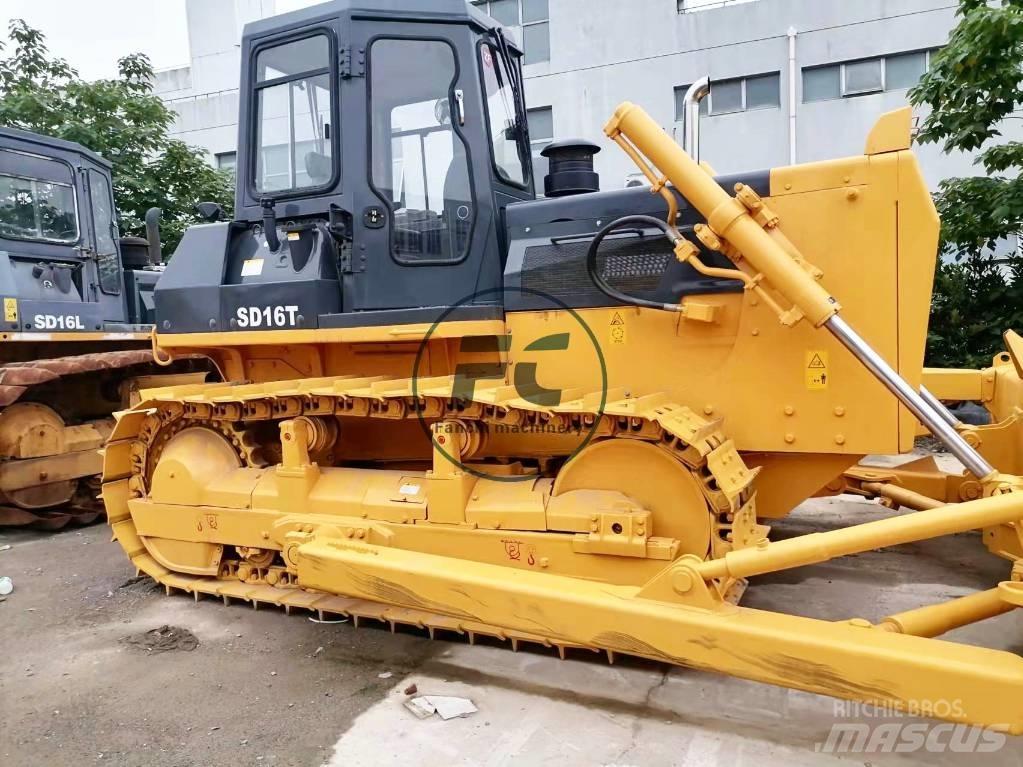

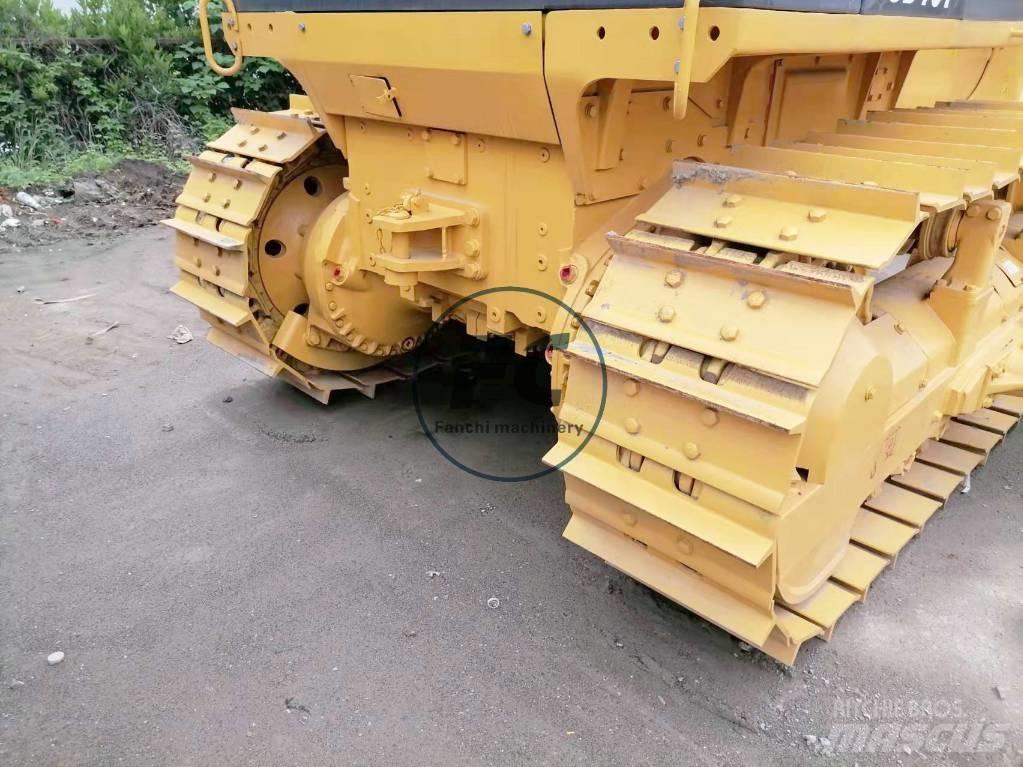

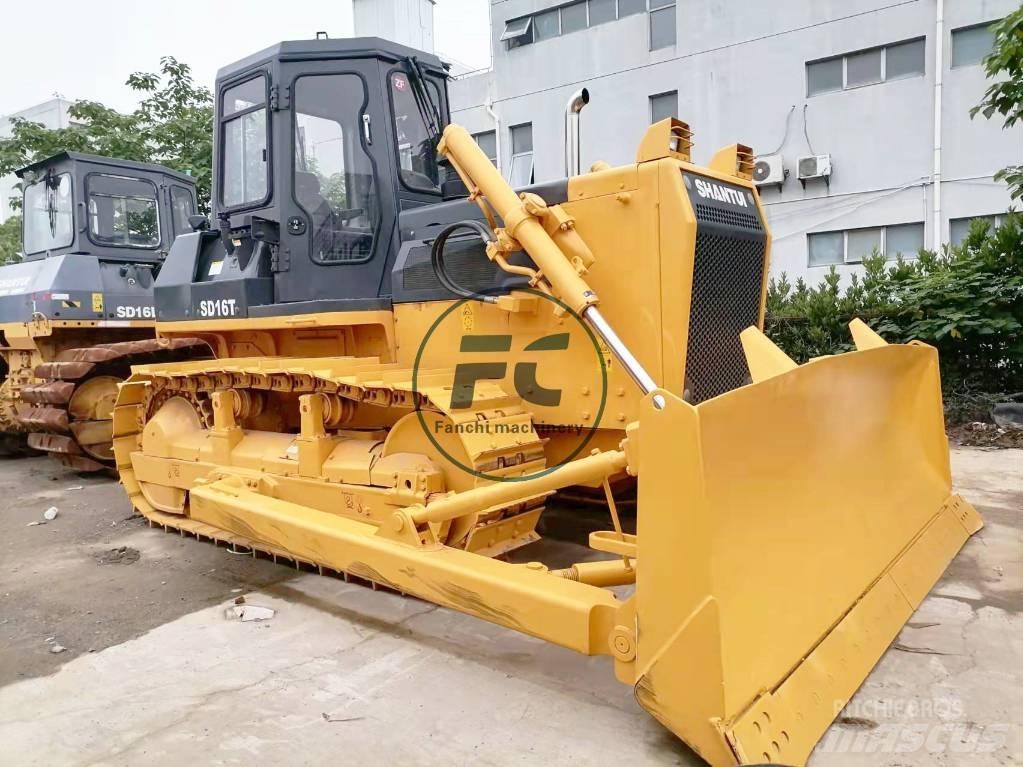

Shantui SD 16T Верижни булдозери
Shantui SD 16T Верижни булдозери
Shantui SD 16T Верижни булдозери
FavoriteЛюбим
shareСподелете
Save searchЗапазване на търсенето
Принтирай

INFO

Продуктова група
Верижни булдозери
Марка /Модел
Shantui SD 16T
Година на регистрация
2024
Часове на употреба
413 h
Страна
Китай
Обща оценка
1
2
3
4
5
ID на Mascus
1CF1AF32

ЦЕНИ

Избери валута

ХАРАКТЕРИСТИКИ

Вид управление
Дизел
Брой на предишни собственици
1
Бруто тегло
17 000 кг
Ходова част
С релси
Вид кабина
Затворена кабина
Двигател
131 кв (178 кс)
Размери на транспортиращото тегло
5.140×3.455×3.032 m
Оригинален цвят
YELLOW
Страна на производство
Китай
Оборудван за
propertynames.pp_equippedfor_2100011
Условия за доставка
FOB, EXW
Сертификати
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Аксесоари
Допълнителни хидравлики
Нагревател на двигателя
Друга информация
The Shantui SD16T is a 160-horsepower mechanical drive bulldozer engineered for versatility and efficiency across various earthmoving and construction applications. Building upon the foundation of the SD16 series, the SD16T offers enhanced features tailored to meet diverse operational needs.​ Key Features: 1. Engine & Performance Engine Model: Weichai WP10​ Henan Harvest Machinery & Truck Co., Ltd +2 product.global-ce.com +2 machplaza.com +2 Rated Power: 131 kW (approximately 175 hp) @ 1,850 rpm​ Fuel Efficiency: Designed for optimal fuel consumption, balancing power output with economical operation.​ 2. Operating Weight & Dimensions Operating Weight: Approximately 17,000 kg (37,478 lbs)​ Dimensions (L × W × H): 5,140 mm × 3,455 mm × 3,032 mm​ Ground Pressure: Approximately 58 kPa, suitable for various terrains.​ machplaza.com +1 product.global-ce.com +1 3. Transmission & Undercarriage Transmission Type: Planetary gear with multi-disc clutch, hydraulically connected, featuring forced lubrication.​ shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Speeds: Forward: 2.67 km/h to 11.13 km/h​ product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Reverse: 3.48 km/h to 9.92 km/h​ product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Track System: Track Gauge: 1,880 mm​ Shoe Width: 510 mm (options for 560 mm and 610 mm)​ Ground Contact Length: 2,430 mm​ 4. Blade & Ripper Specifications Blade Type: Straight tilt blade​ Blade Capacity: Approximately 3.8 m³​ lectura-specs.com +2 shantuibj.en.made-in-china.com +2 Alibaba +2 Blade Dimensions: Width: 3,388 mm; Height: 960 mm​ shantuibj.en.made-in-china.com +1 lectura-specs.com +1 Maximum Digging Depth: 540 mm​ lectura-specs.com +2 工业目录 +2 product.global-ce.com +2 Ripper Type: Optional three-shank ripper​ shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Maximum Ripping Depth: 570 mm​ 5. Operator Comfort & Controls Cabin: Ergonomically designed for operator comfort, featuring intuitive controls and ample visibility.​ Steering & Braking: Equipped with wet multiple disc clutches and hydraulically actuated brakes for precise maneuvering.​ machinery-trucks.com +1 shantuibj.en.made-in-china.com +1 6. Durability & Maintenance Robust Construction: Built with high-quality materials to withstand rigorous working conditions.​ Maintenance Access: Designed for ease of serviceability, reducing downtime and operational costs.​ Applications ✔ Earthmoving: Efficiently handles tasks such as grading, leveling, and soil redistribution.​✔ Construction: Ideal for site preparation, road building, and infrastructure projects.​✔ Mining & Quarrying: Capable of managing overburden removal and material transportation.​✔ Agriculture: Useful for land clearing, terracing, and other large-scale farming operations.​ Summary The Shantui SD16T bulldozer combines power, precision, and durability, making it a reliable choice for a wide range of construction and earthmoving projects. Its mechanical drive system, coupled with user-friendly controls and robust build, ensures high productivity and longevity in various working environments.Покажете повече

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Китай
